Jianfeng Ceiling Fan Controller

Home / Product Catalog / DC Remote

DC Ceiling Fan
Controllers & Remote Kits

Matched DC ceiling fan remote and receiver kits for OEM projects, with six-speed control and model-specific lighting options.

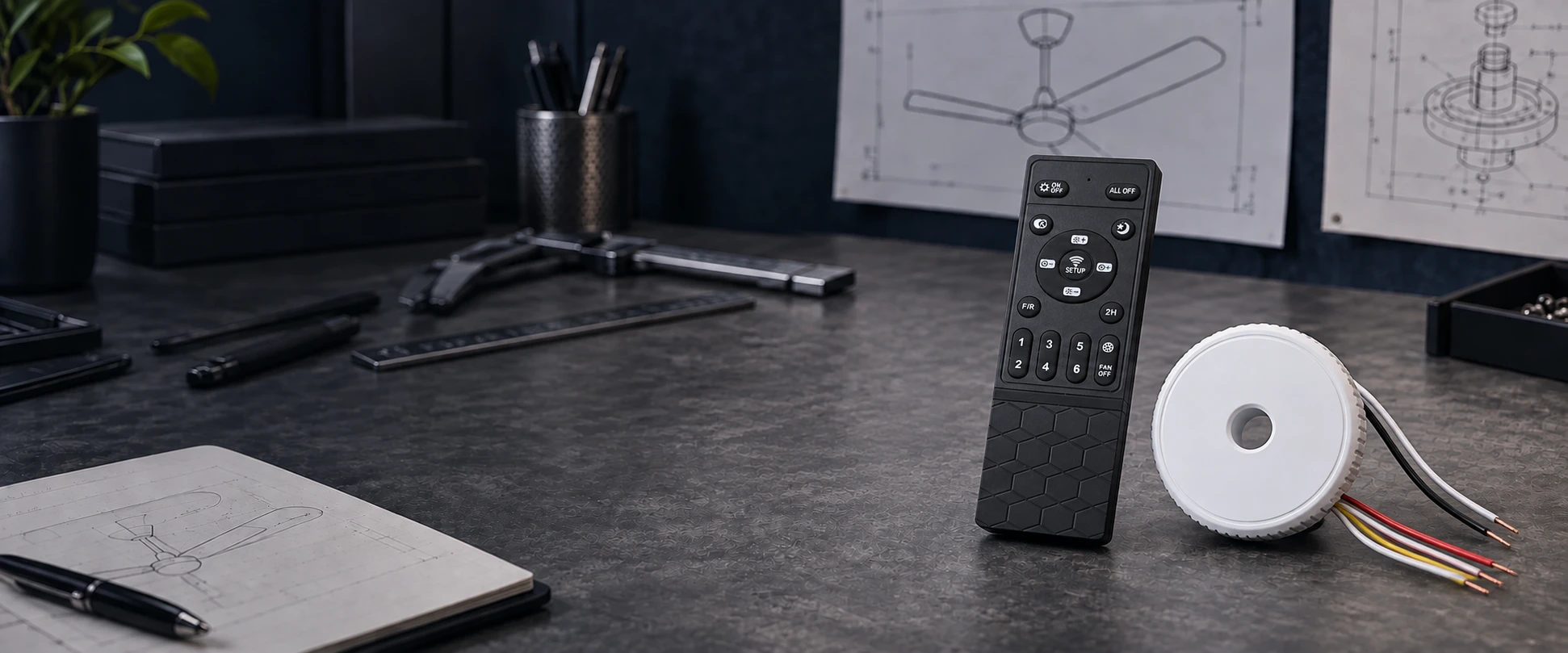

Black DC03-BK ceiling fan remote and white round receiver on an illustrative engineering workbench

Compare DC Controller Options

Compare DC02, DC03, T16 and DC-LCD01 configurations. Each pairs a receiver with a 6-speed ceiling fan remote control. Review reverse, lighting and timer functions, plus app or LCD options. Match the motor platform and specified input voltage separately.

Showing 1–5 of 5 DC models.

JF-DC02

6 speeds / Reverse
Light dimming
Remote + FanLamp Pro app
Confirm ratings and receiver dimensions during review.

JF-T16

6 speeds / Reverse
Light dimming / Color-temperature control
RF remote
Input: 220–240 V AC, 50/60 Hz
Receiver: 130 × 60 × 26 mm

JF-DC-LCD01

6 speeds / Reverse
Light on/off
RF remote
Input: 220–240 V AC, 50/60 Hz
Receiver: 118 × 60 × 29 mm

JF-DC03-BK

6 speeds / Reverse
Light dimming / Color-temperature control
Remote + FanLamp Pro app
Confirm ratings and receiver dimensions during review.

JF-DC03

6 speeds / Reverse
Light dimming / Color-temperature control
Remote + FanLamp Pro app
Confirm ratings and receiver dimensions during review.

Summaries show selected functions. Open each model for full specifications; confirm any unlisted voltage, load or receiver dimensions before ordering.

Match the Motor, Supply and Controls

Use these checks to review a DC ceiling fan controller before approving a sample.

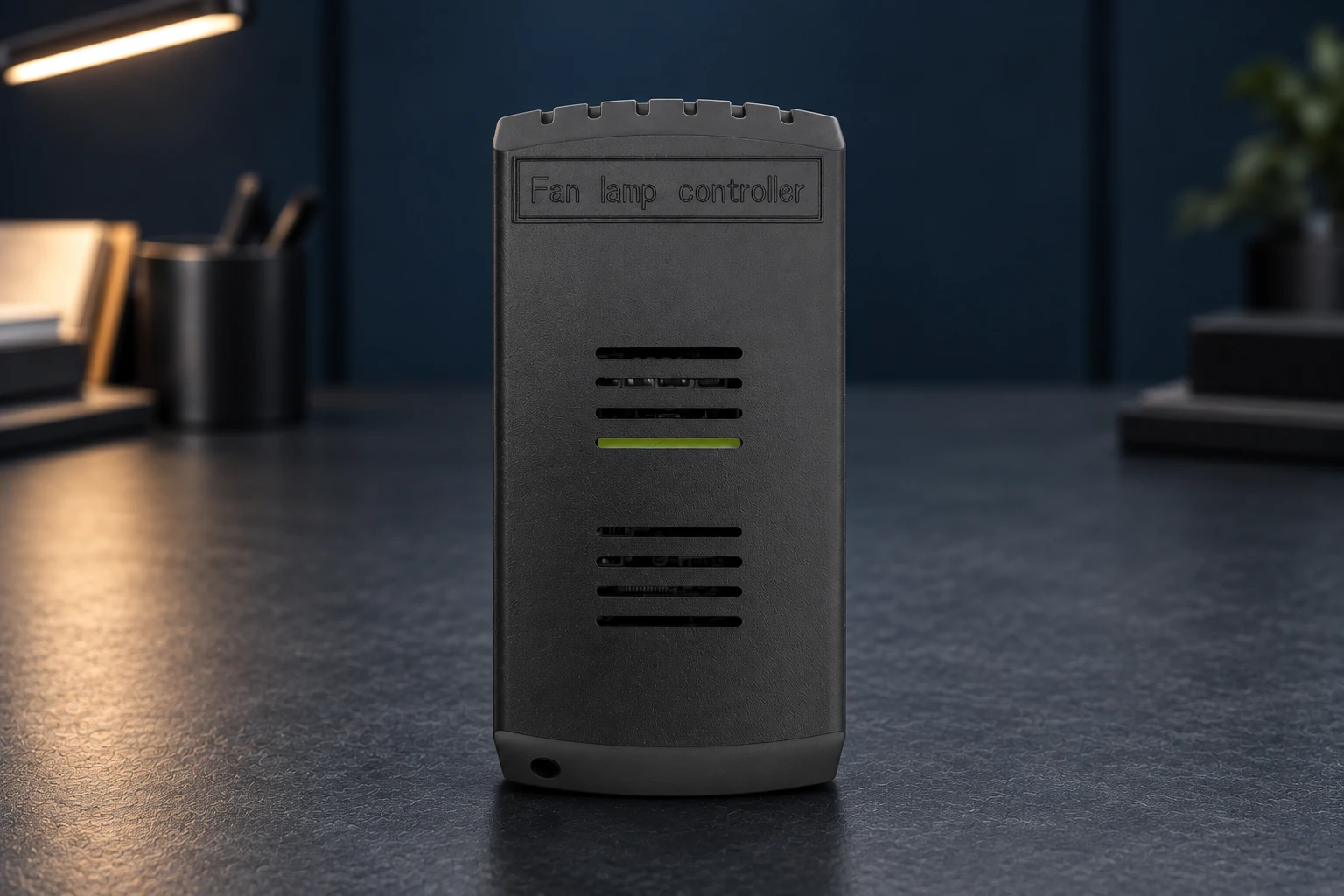

Black DC02 ceiling fan receiver showing its rectangular housing and ventilation slots

Motor & power

Review the motor specification, connector pin assignments and control requirements. Confirm the controller input voltage and motor load separately; a matching connector alone does not establish compatibility.

Lighting & operation

Match the light load and required switching, dimming or color-temperature functions. Compare handset, LCD and supported app options; validate speed and reverse operation with the selected motor.

Space & validation

Check the receiver drawing against usable canopy space, allowing room for connectors and wiring. Test the matched sample in your complete fan assembly before confirming a production configuration.

Follow the model-specific wiring diagram. Mains wiring should be handled by a qualified installer.

DC Controller Selection Questions

Not necessarily. DC describes the motor platform, while input voltage describes the supply to the controller. T16 and DC-LCD01 list 220–240 V AC, 50/60 Hz input. This is not a shared rating for all DC models: confirm the selected controller’s supply, motor interface and load limits.

Both list six speeds, reverse and a timer. T16 adds brightness adjustment and three color temperatures, with 48 W motor / 18 W light limits and a 130 × 60 × 26 mm receiver. DC-LCD01 has an LCD handset, natural-wind mode and light on/off, with 65 W motor / 24 W light limits and a 118 × 60 × 29 mm receiver. Dimensions are L × W × H.

DC02, DC03-BK and DC03 list remote control plus the FanLamp Pro app. DC02 lists dimming; DC03 variants also list color-temperature selection. Their timers and modes differ, so compare the individual model pages. Confirm the app configuration and lamp compatibility during sample review.

Appearance, connector shape or RF frequency alone cannot establish compatibility. Match the motor specification, wiring and pin assignments, input supply, light load and remote pairing requirements. Send label photos and the original wiring information for review; validate an approved matched sample before using a replacement in the complete fan.

PROJECT INQUIRY

Discuss Your DC
Controller Requirements

Send the motor specification, wiring diagram, input supply, light load, receiver space, required functions and estimated quantity for an OEM DC ceiling fan controller review.

White DC03 ceiling fan remote with a white round receiver and connection wires
Add technical details (optional)

Sample arrangements, customization scope, MOQ and delivery timing are confirmed for each project.
