JF-DC03-BK

JF-DC03-BK DC Ceiling Fan Remote Kit with Light Dimming and CCT

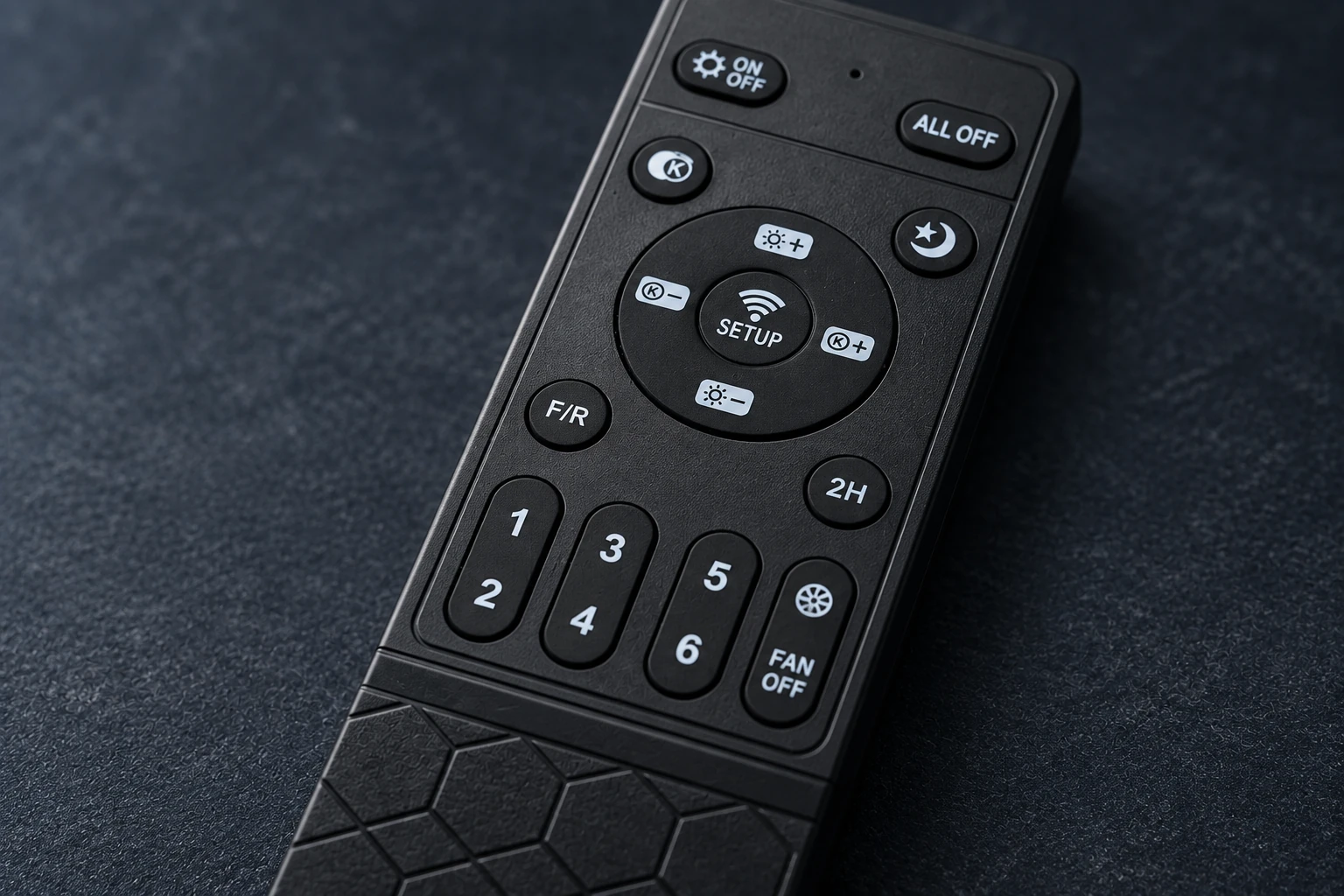

JF-DC03-BK pairs a black handset with a round DC receiver. It provides six fan speeds, forward/reverse, natural wind, night mode and a 2-hour timer, plus light switching, dimming and color-temperature selection. FanLamp Pro app control is listed. Confirm these functions for the exact ordered version.

Motor

DC

Interface

Remote + FanLamp Pro app

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

White round receiver shown with DC03 and DC03-BK ceiling fan kits, with connection wires

Parameter

Specification

Motor type

DC

Fan & light functions

6 fan speeds; forward/reverse; natural wind; light on/off, dimming and color-temperature selection; night mode; 2-hour timer

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

DC03 series round receiver top and side outline illustration; dimensions require confirmation

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

Request the JF-DC03-BK round-receiver drawing with diameter, depth and connector positions before finalizing the installation. Check canopy clearance with the connectors and cables included. Use the dimensioned drawing to assess fit; the product illustration shows the general outline only.

Electrical connection

For JF-DC03-BK selection, send your supply voltage, DC motor specifications and light-driver details. Request the input-voltage rating, motor and light load limits, RF frequency and wiring diagram for the kit. Specify JF-DC03-BK and the required timer settings in your enquiry, and check the selected remote and receiver together during sample evaluation.

Ask About
This Model.

Share your requirements for a product-specific reply.

Product: JF-DC03-BK

Enquiry for JF-DC03-BK

Your product reference is included.
