Ceiling Fan
Wall Control Systems

Matched ceiling fan and light wall control kits for OEM projects, with receiver and handheld remote options.

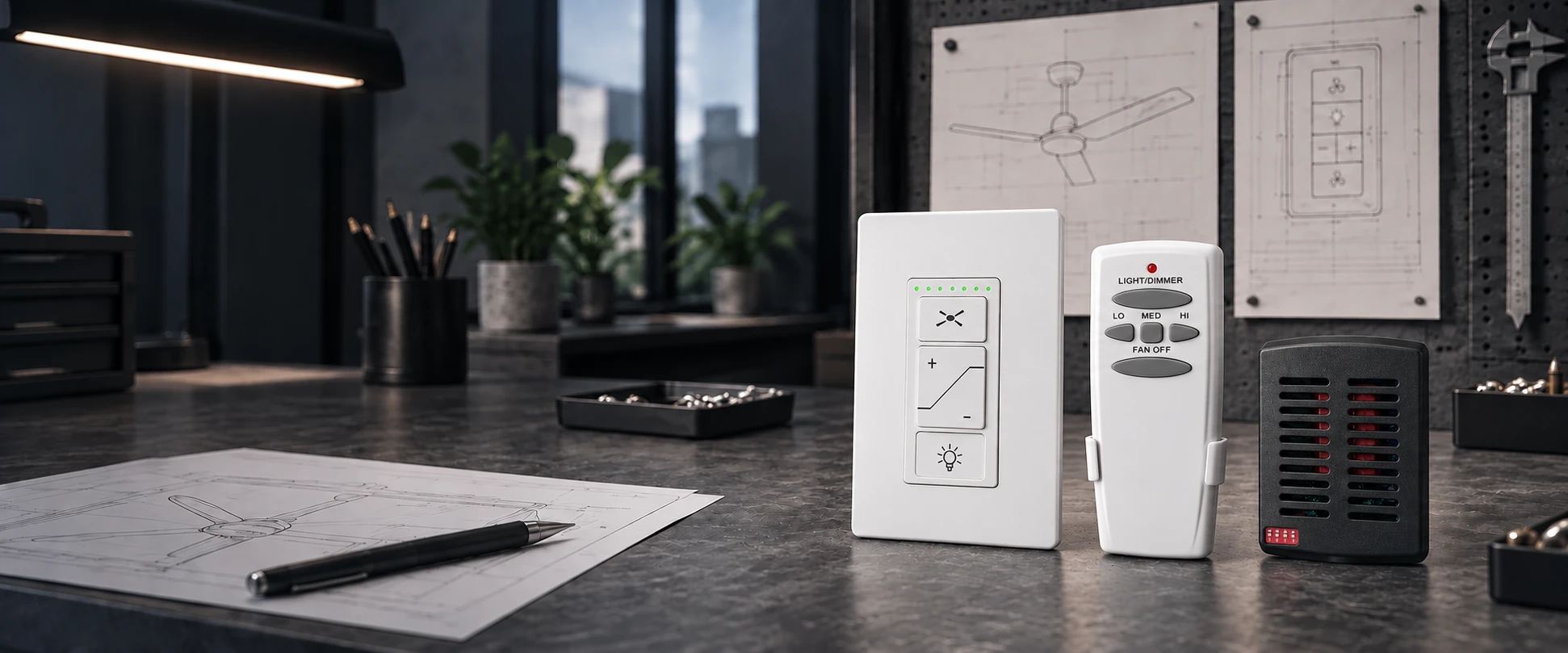

068 wall panel, HD5 remote and MINI-R28 receiver on an illustrative engineering workbench

Compare Wall Control Configurations

Choose a wall-mounted control with a matched receiver, or a ceiling fan wall control with remote operation from a 53T or HD5 handset. Compare the supplied components, three-speed AC fan control and light dimming, then confirm the installation requirements.

Showing 1–4 of 4 wall control models.

JF-068-53T-MINI-R28

AC motor / 3 speeds / Light dimming
Wall panel + 53T RF remote
Receiver: MINI-R28
Confirm electrical ratings and installation dimensions.

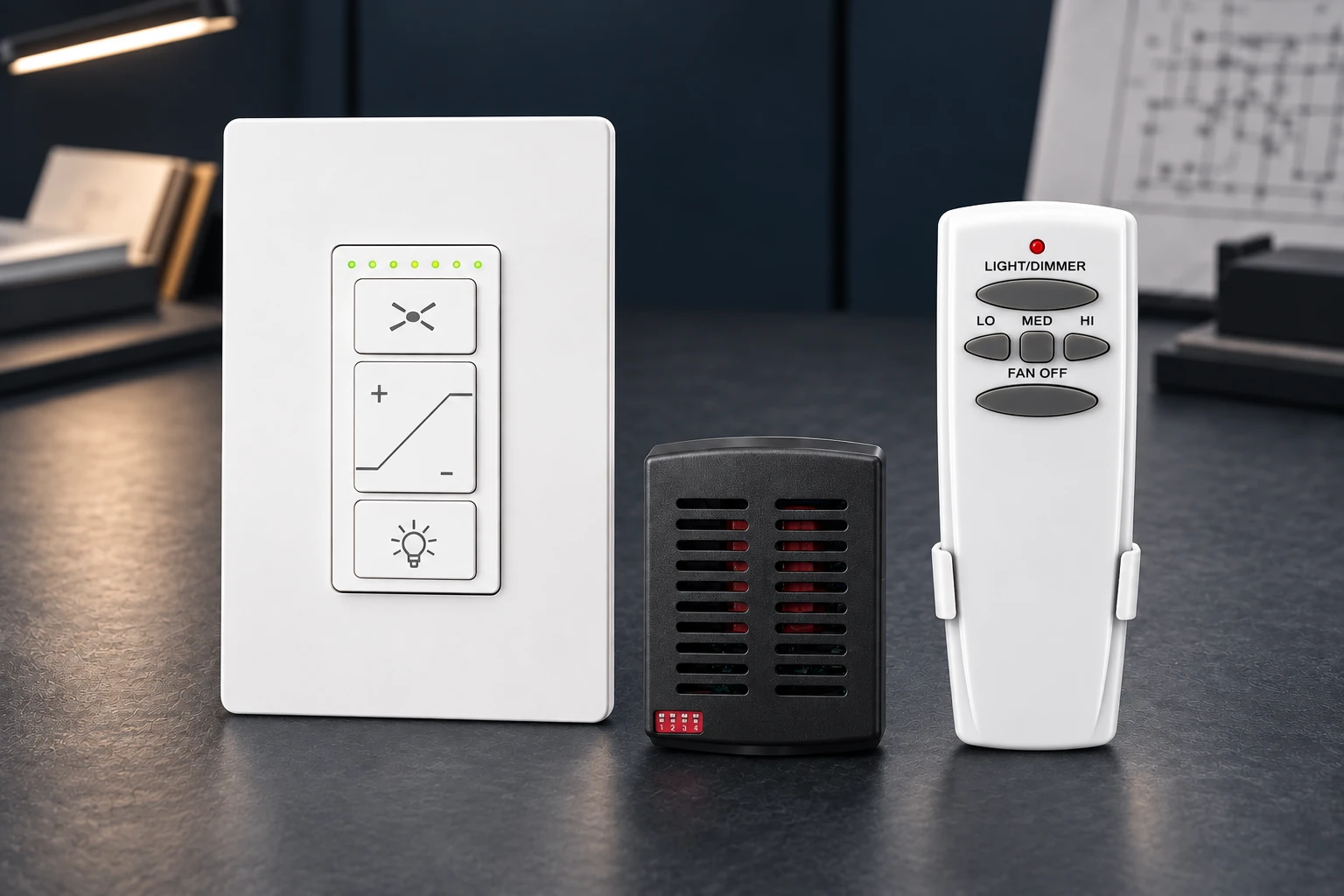

JF-068-HD5-MINI-R28

AC motor / 3 speeds / Light dimming
Wall panel + HD5 RF remote
Receiver: MINI-R28
Confirm electrical ratings and installation dimensions.

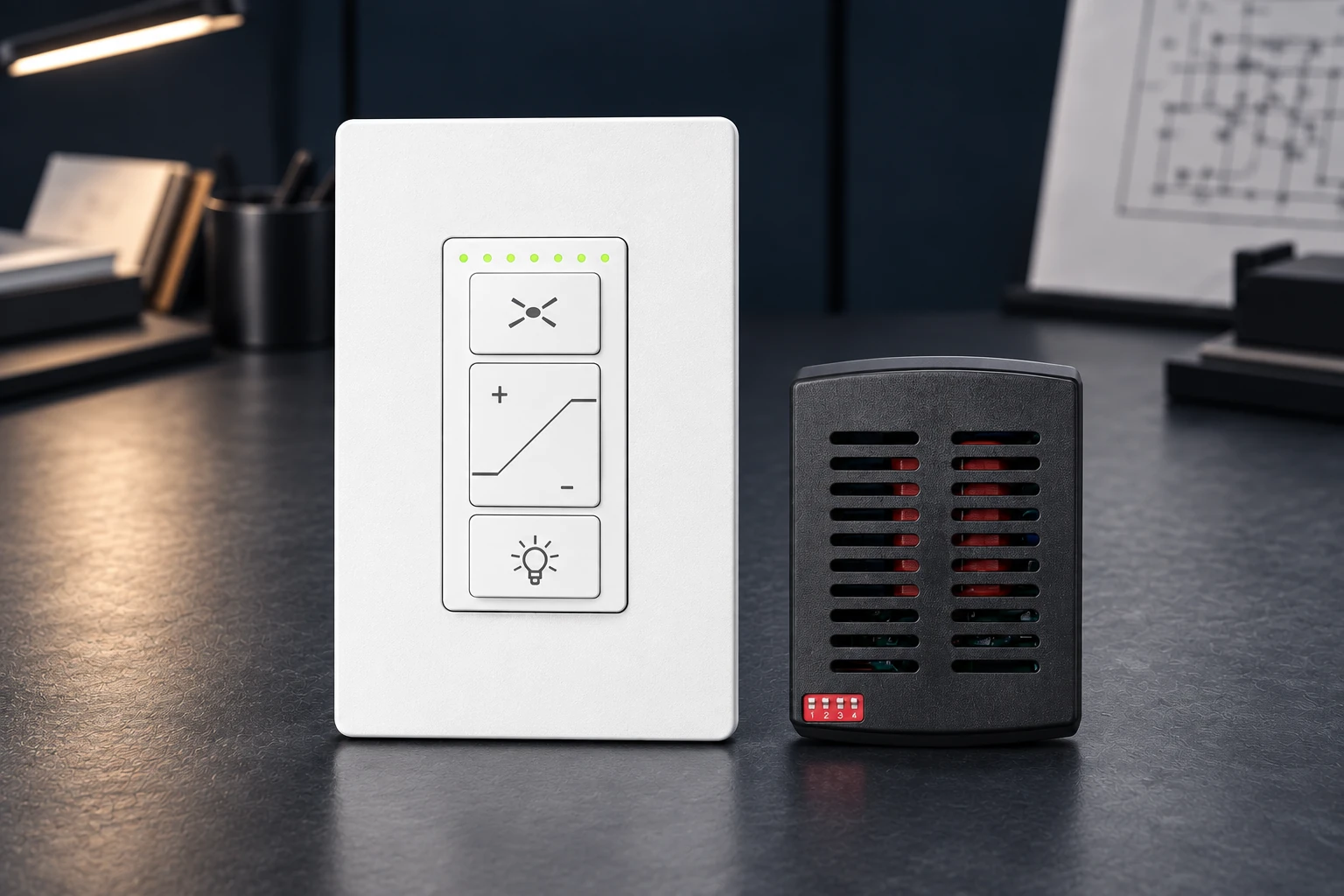

JF-068-MINI-R28

AC motor / 3 speeds / Light dimming
Wall control + RF receiver
Receiver: MINI-R28
Confirm electrical ratings and installation dimensions.

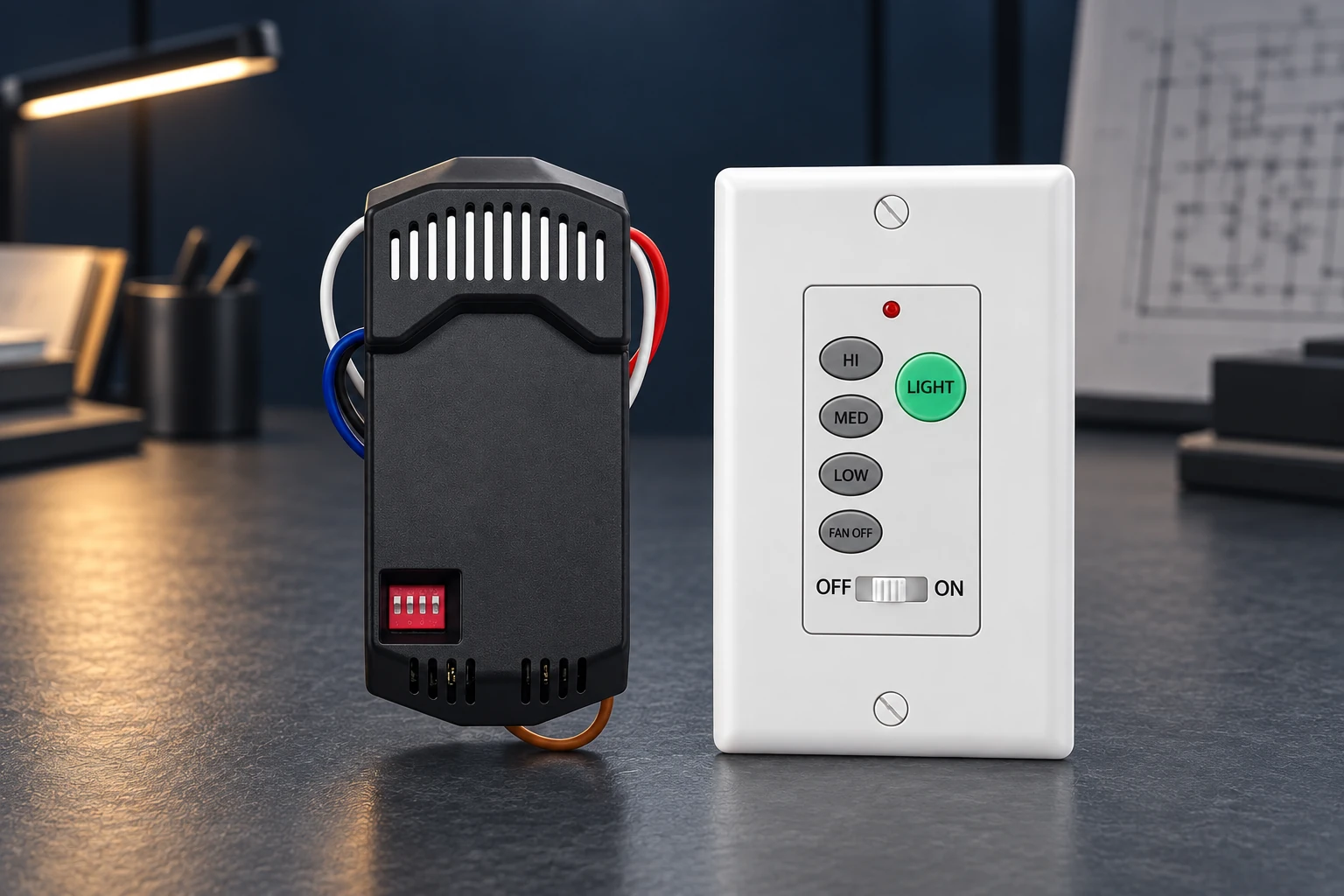

JF-BY06-R28

AC motor / 3 speeds / Light dimming
Wall control + RF receiver
Receiver: R28
Input: AC 110V
Confirm load limits and installation dimensions.

Summaries show selected functions. Open each model for full specifications; confirm any unlisted voltage, load or receiver dimensions before ordering.

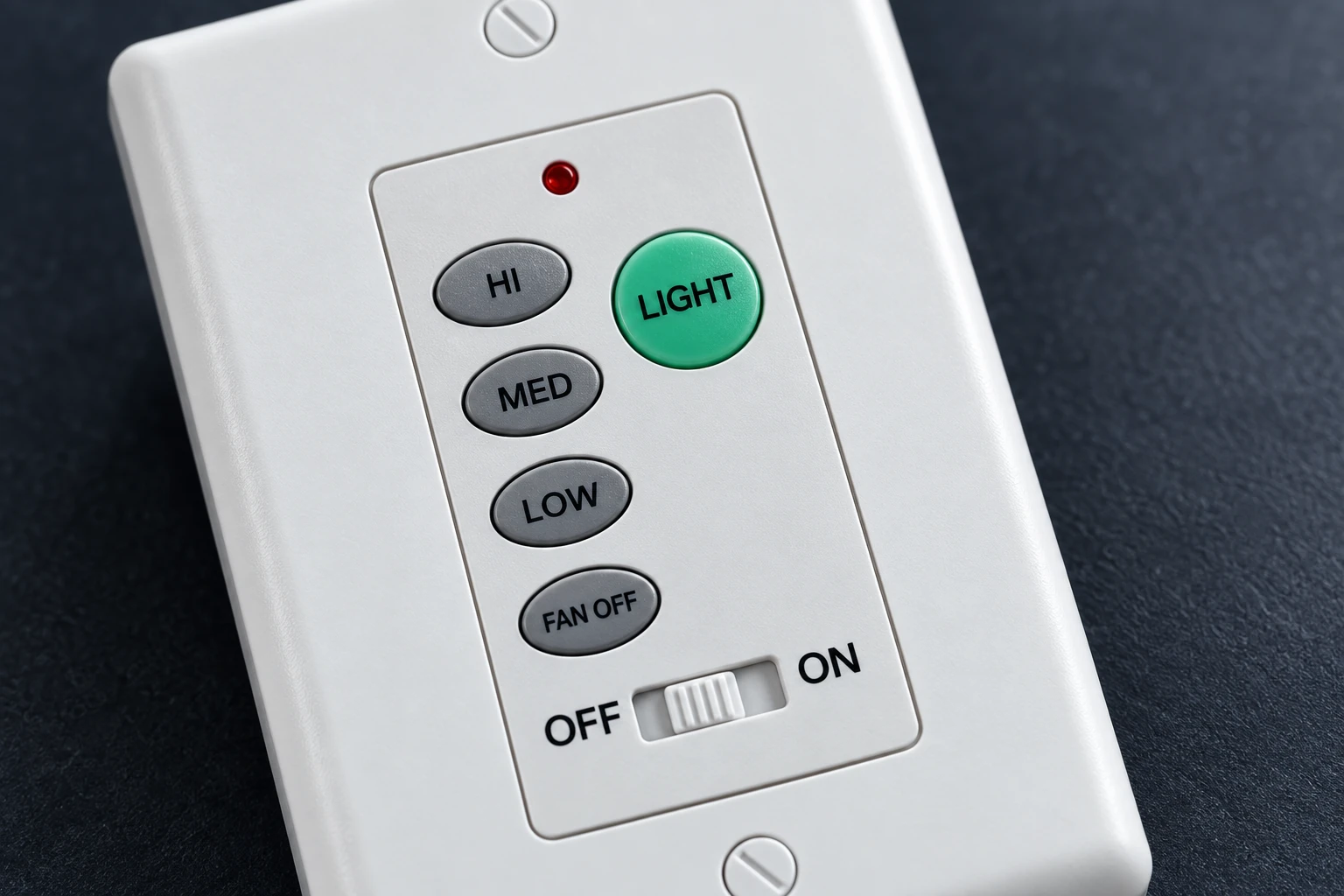

Close-up of the BY06-R28 wall control showing fan speed, light and on-off controls

Check the Panel, Wiring and Receiver

A ceiling fan wall controller is part of a matched system. Check both ends of the installation.

Control components

Match the wall panel, receiver and any handheld remote. Confirm the pairing or DIP-code procedure for the chosen kit; similar controls are not automatically interchangeable.

Mounting & wiring

Check wall-box size, panel depth, available conductors and canopy space. No-neutral wording applies to the wall panel, not to every connection in the receiver system.

Fan & light loads

Confirm AC motor compatibility, supply voltage and separate fan/light ratings. Dimming requires a compatible lamp or driver. Validate the matched sample in the complete fan assembly.

Follow the model-specific wiring diagram. Mains wiring should be handled by a qualified installer.

Wall Control Selection Questions

068-53T-MINI-R28 combines a 068 wall panel, 53T handset and MINI-R28 receiver. 068-HD5-MINI-R28 combines the panel, HD5 handset and receiver; its listed functions include DIP-code matching. BY06-R28 and 068-MINI-R28 are listed as wall-control and receiver configurations. Confirm the supplied components for the selected kit.

The published installation notes specify no neutral at the wall panel; the 068 configurations describe a two-wire wall-control arrangement. The receiver still needs its specified supply and fan/light connections. This does not mean the entire kit is wire-free or a universal replacement for a wall switch. Check the approved model-specific wiring diagram with a qualified installer.

All four listed models specify three fan speeds and light dimming. BY06-R28 lists press-and-hold dimming and a master slide; 068-MINI-R28 lists stepless dimming and indicator LEDs. Confirm the lamp or driver supports the dimming method, and verify separate motor and light load limits.

Do not assume universal fit. BY06-R28 lists AC 110 V input; other models’ supply ratings and the receiver dimensions require confirmation. Review the AC motor, light load, wall-box format, conductors, canopy clearance and pairing method. The separate AC remote kits named 53T or HD5 do not establish the dimensions or ratings of a MINI-R28 wall-control bundle.

PROJECT INQUIRY

Discuss Your Wall
Control Requirements

Send your fan and light loads, supply voltage, wall-box and canopy dimensions, available wiring, preferred control points and estimated quantity for an OEM ceiling fan wall control review.

White 068 ceiling fan wall panel beside its black MINI-R28 receiver
Add technical details (optional)

Sample arrangements, customization scope, MOQ and delivery timing are confirmed for each project.
