JF-068-53T-MINI-R28

JF-068-53T-MINI-R28 Ceiling Fan Wall and Handheld Remote Control Kit

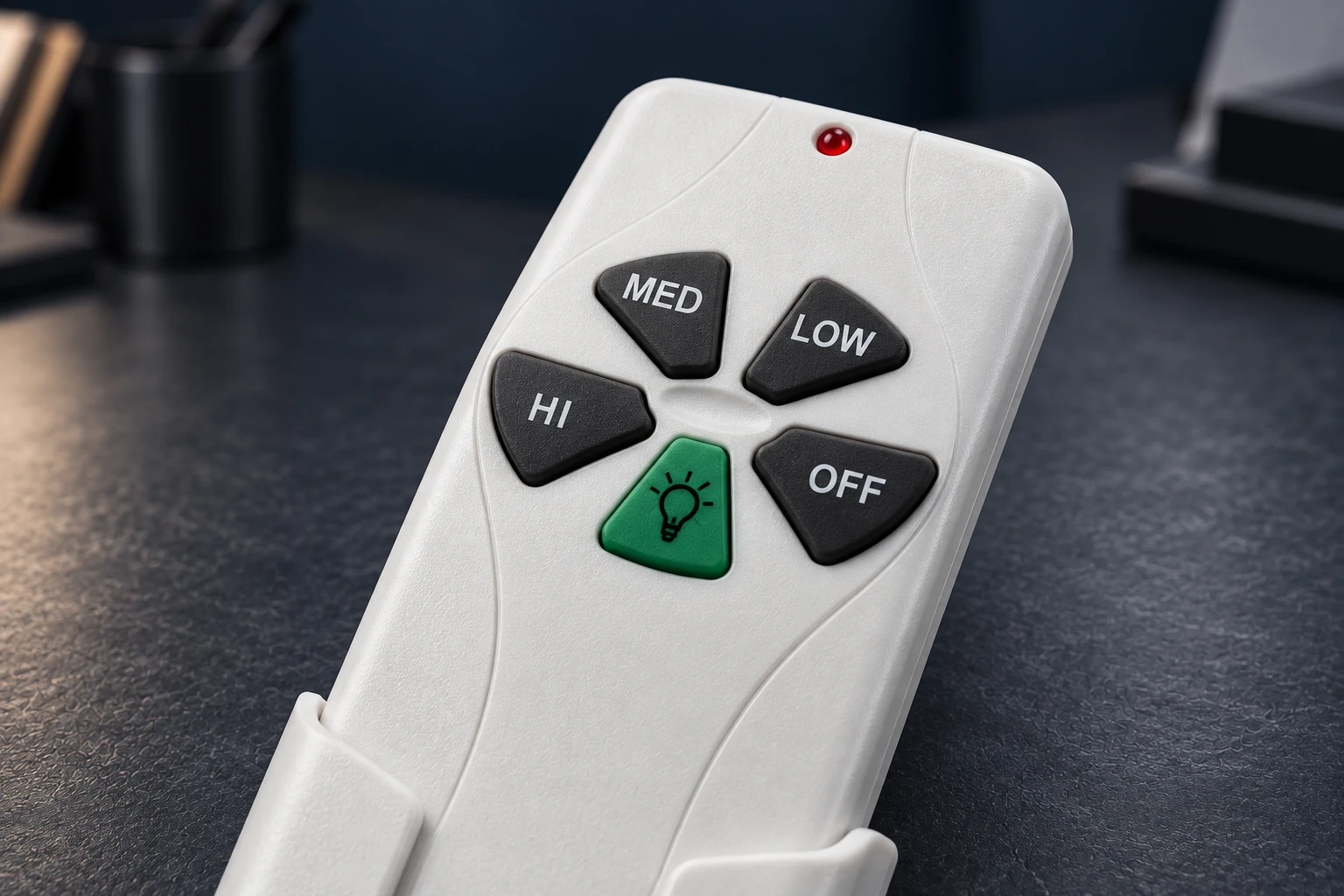

JF-068-53T-MINI-R28 combines a 068 wall panel, 53T handheld remote and MINI-R28 receiver for AC ceiling fan control. Both control points provide three-speed fan operation, fan off, light on/off and light dimming. Select the complete matched bundle rather than assuming the standalone 53T AC kit uses the same receiver.

Motor

AC

Interface

Wall panel + 53T RF remote

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

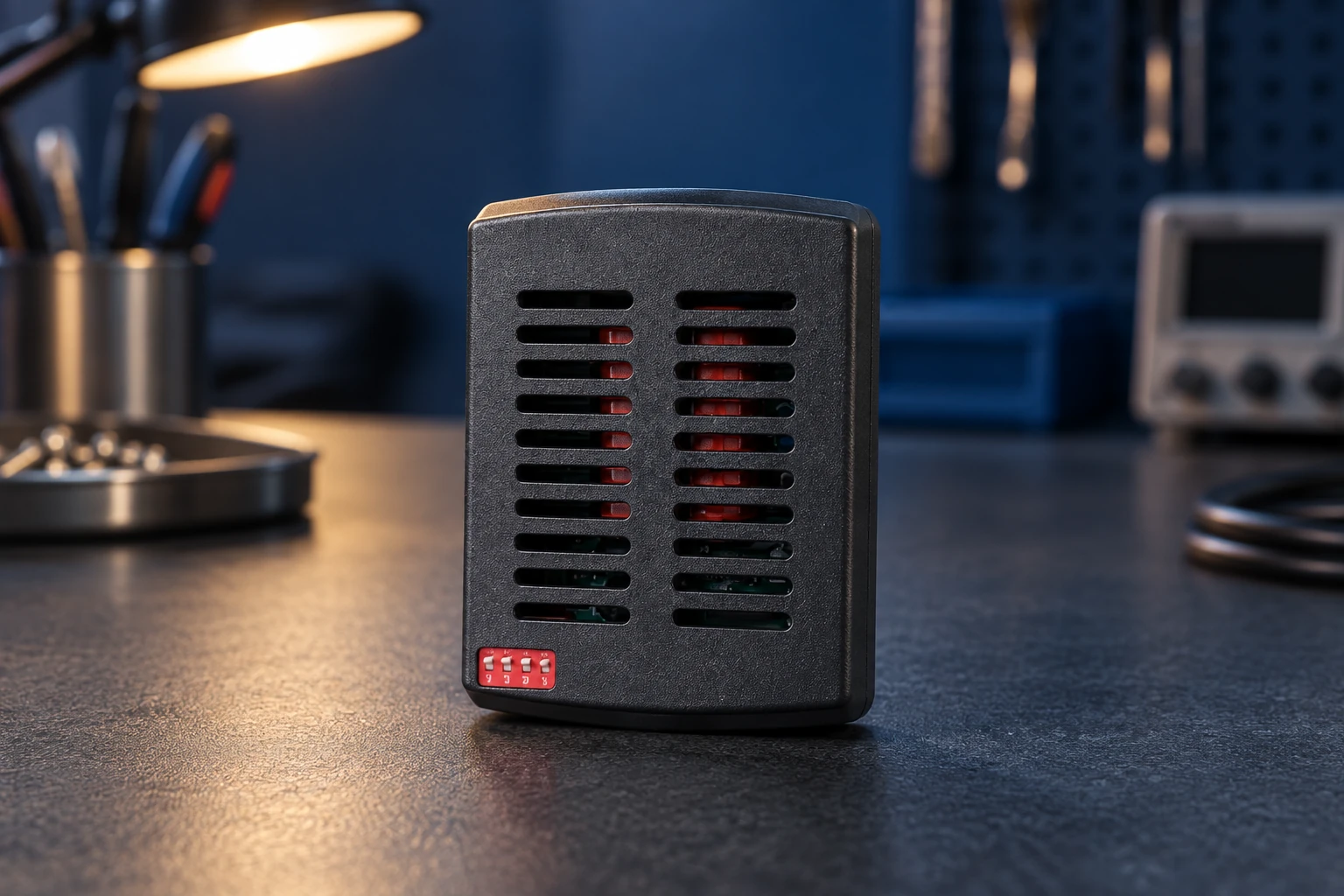

Black MINI-R28 receiver for ceiling fan wall control kits, showing ventilation slots and switch block

Parameter

Specification

Motor type

AC

Fan & light functions

3 fan speeds; fan off; light on/off and dimming; wall and handheld control

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

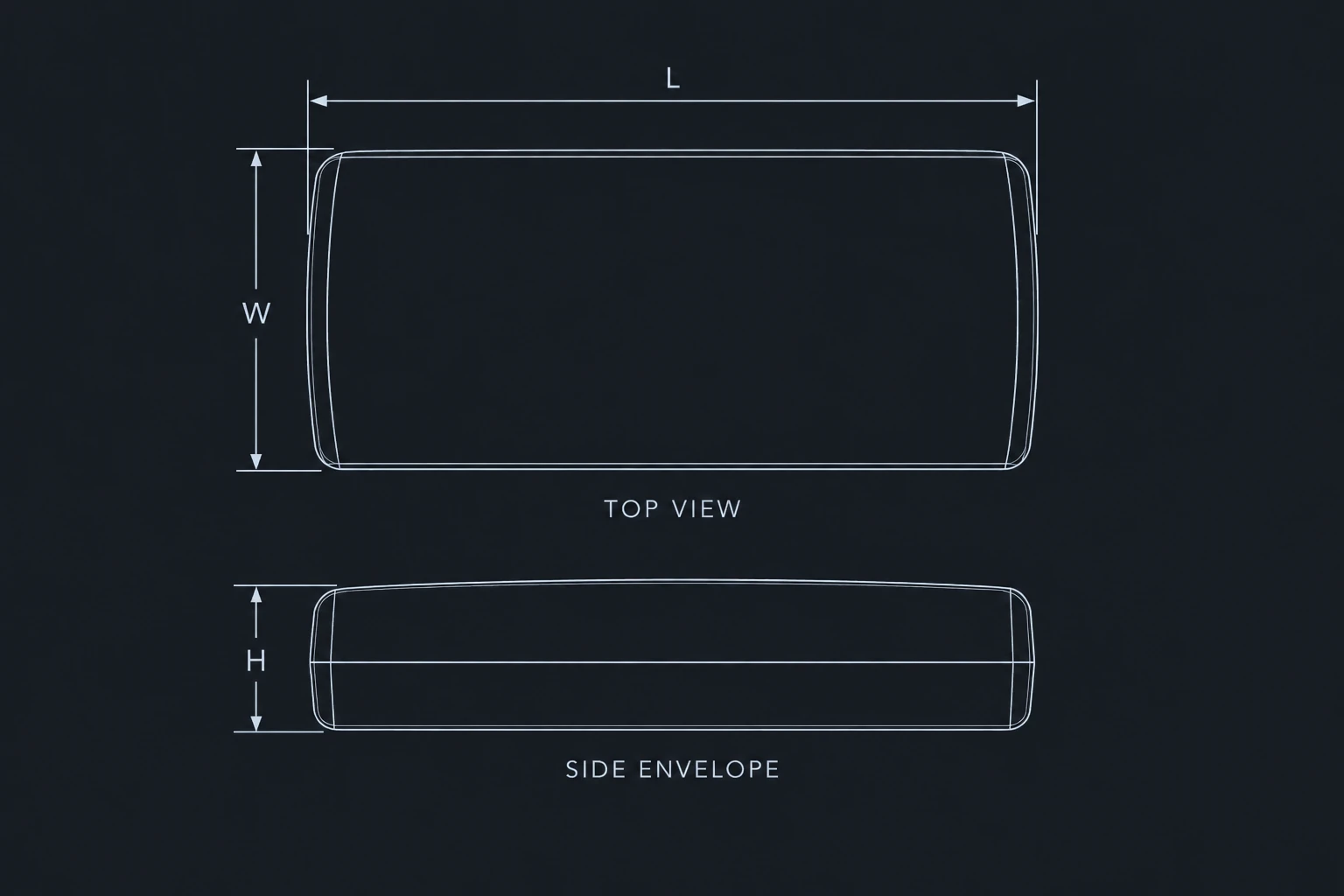

MINI-R28 wall control receiver top and side outline illustration; dimensions require confirmation

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

Request the 068 wall-panel and MINI-R28 receiver drawings for the complete JF-068-53T-MINI-R28 bundle. Check wall-box depth, panel mounting and canopy clearance with space for connectors and cable routing. Use the bundle-specific drawings when planning the installation.

Electrical connection

The two-wire, no-neutral arrangement applies to the wall panel. The receiver requires its own specified supply and fan/light connections. Request the input-voltage rating, motor/light load limits, complete wiring diagram and pairing instructions for this bundle. Include your lamp or driver details, required control distance and wall/ceiling layout in the enquiry, then check dimming and control range in the intended installation.
