JF-068-HD5-MINI-R28

JF-068-HD5-MINI-R28 Ceiling Fan Wall and Handheld Remote Control Kit

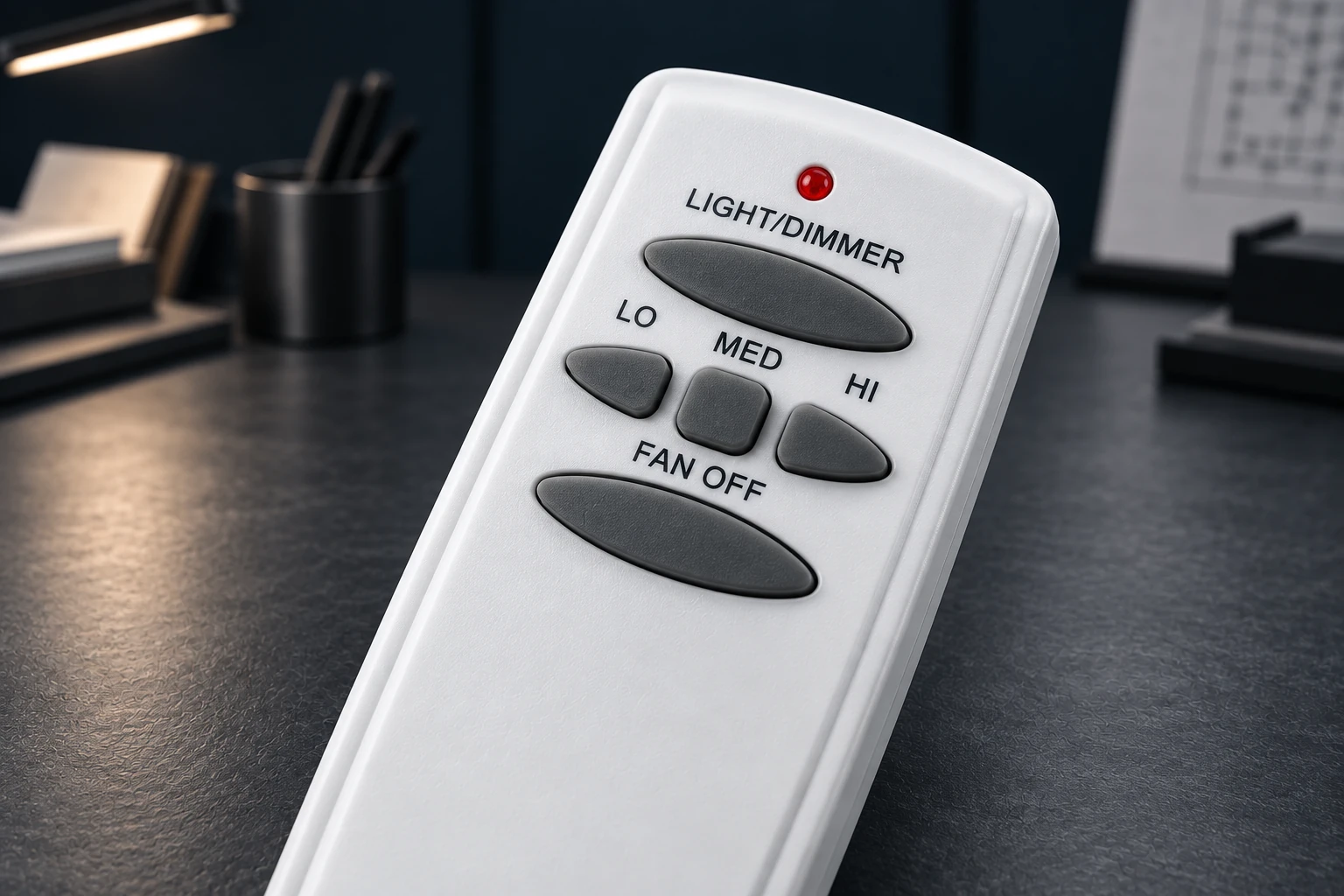

JF-068-HD5-MINI-R28 brings together a 068 wall panel, HD5 handheld remote and MINI-R28 receiver. The AC fan bundle provides three speeds, fan off, light switching and dimming from wall and handheld controls. DIP-code matching is listed for this bundle; confirm the approved settings for all supplied components.

Motor

AC

Interface

Wall panel + HD5 RF remote

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

Black MINI-R28 receiver for ceiling fan wall control kits, showing ventilation slots and switch block

Parameter

Specification

Motor type

AC

Fan & light functions

3 fan speeds; fan off; light on/off and dimming; wall and handheld control; DIP-code matching

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

MINI-R28 wall control receiver top and side outline illustration; dimensions require confirmation

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

Request the 068 wall-panel and MINI-R28 receiver drawings for the complete JF-068-HD5-MINI-R28 bundle. Check wall-box depth, panel mounting and canopy clearance, including connectors and cable routing. Use the bundle-specific drawings rather than the standalone HD5 receiver dimensions.

Electrical connection

The two-wire, no-neutral arrangement applies to the wall panel. The receiver requires its own specified supply and fan/light connections. Send your supply voltage, AC motor specifications and light-driver details, and request the input rating, motor/light load limits, complete wiring diagram and DIP-code instructions for this bundle. Check that the supplied panel, handset and receiver use the matching settings.

Ask About
This Model.

Share your requirements for a product-specific reply.

Product: JF-068-HD5-MINI-R28

Enquiry for JF-068-HD5-MINI-R28

Your product reference is included.
