JF-068-MINI-R28

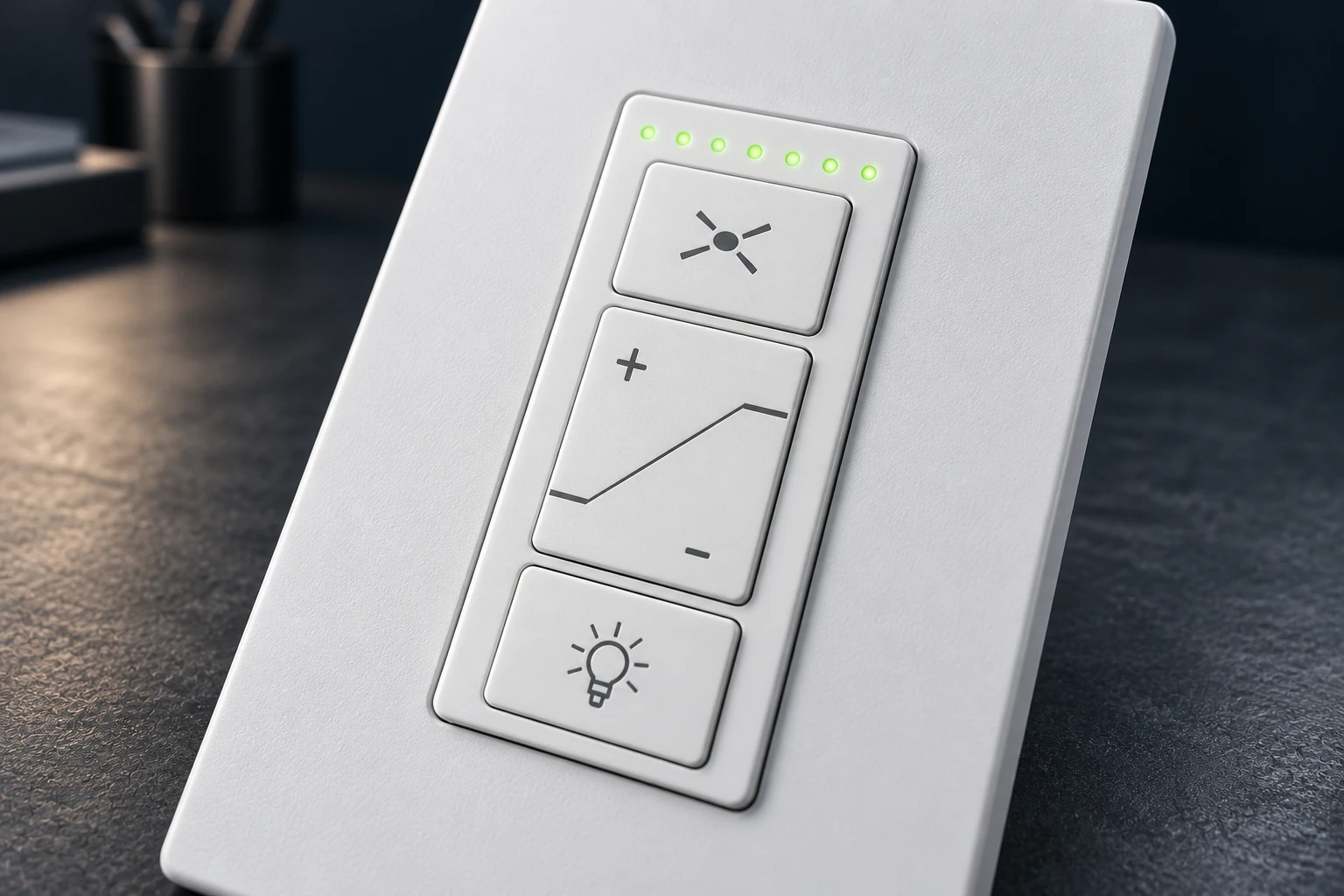

JF-068-MINI-R28 Ceiling Fan Wall Control with Light Dimmer

JF-068-MINI-R28 combines a Decora-style wall panel with a MINI-R28 receiver for AC fan and light control. It offers three fan speeds, fan/light switching, stepless light dimming and indicator LEDs. Review the complete matched panel-and-receiver configuration for your fan.

Motor

AC

Interface

Wall control + RF receiver

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

Black MINI-R28 receiver for ceiling fan wall control kits, showing ventilation slots and switch block

Parameter

Specification

Motor type

AC

Fan & light functions

3 fan speeds; fan and light on/off; stepless light dimming; indicator LEDs

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

MINI-R28 wall control receiver top and side outline illustration; dimensions require confirmation

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

Request the 068 wall-panel and MINI-R28 receiver drawings. Check wall-box depth, panel mounting dimensions and canopy clearance, including connectors and cable routing, before finalizing the installation.

Electrical connection

The two-wire, no-neutral arrangement applies to the wall panel. The receiver requires its own specified supply and fan/light connections. Send your supply voltage, AC motor specifications and light-driver details, and request the input rating, motor/light load limits and complete JF-068-MINI-R28 wiring diagram before installation. Check the intended lamp or driver for dimming compatibility.
