BY06-R28
Wall-Mount Fan Control Kit

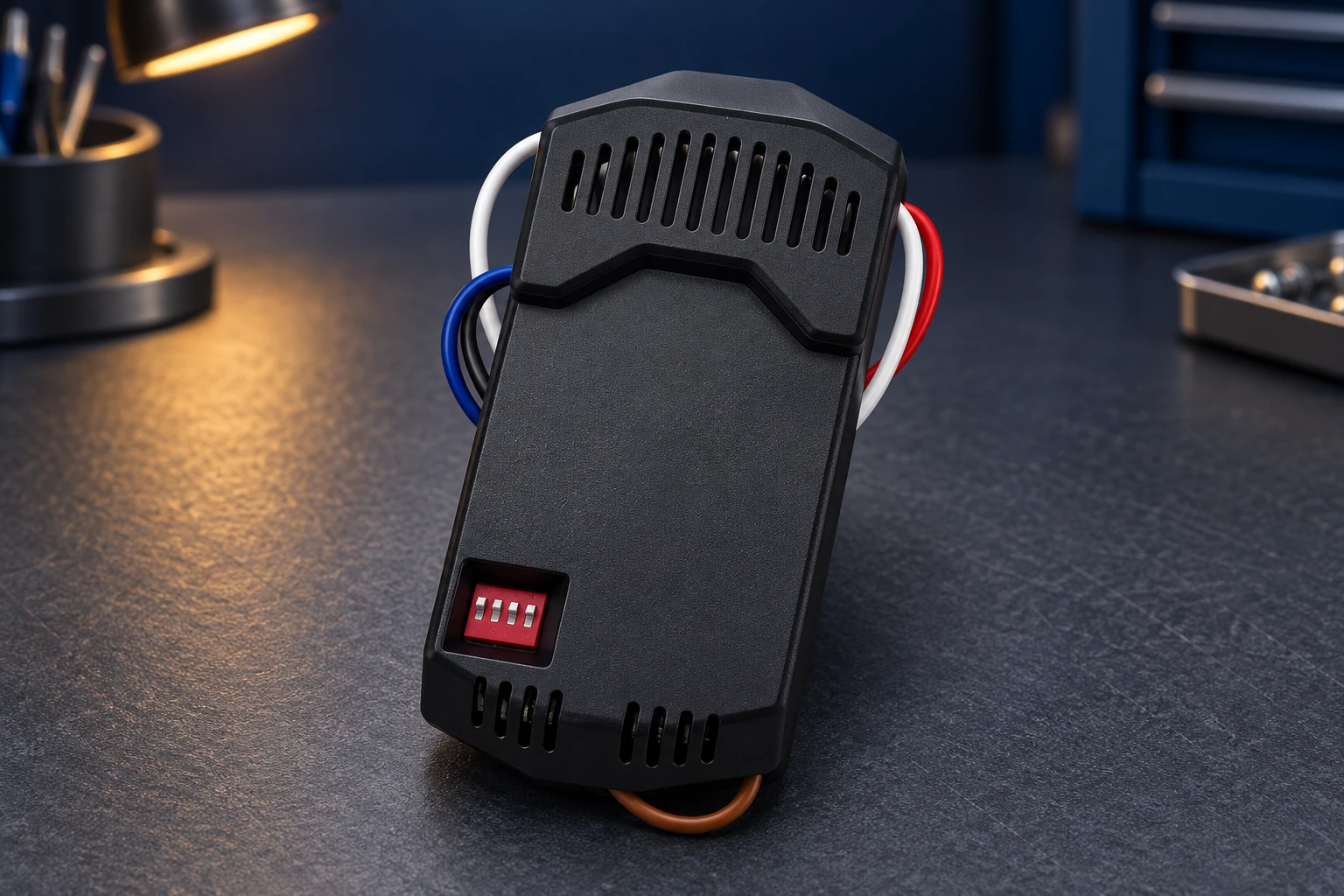

Wall-mounted fan and light controls paired with an R28 receiver for AC fan installations.
Motor
AC
Interface
Wall control + RF receiver
Input rating
AC 110V
Parameter
Specification
Motor type
AC
Input voltage
AC 110V
Fan & light functions
3 fan speeds; fan off; light on/off and press-and-hold dimming; master on/off slide
Final specifications follow the approved model datasheet.

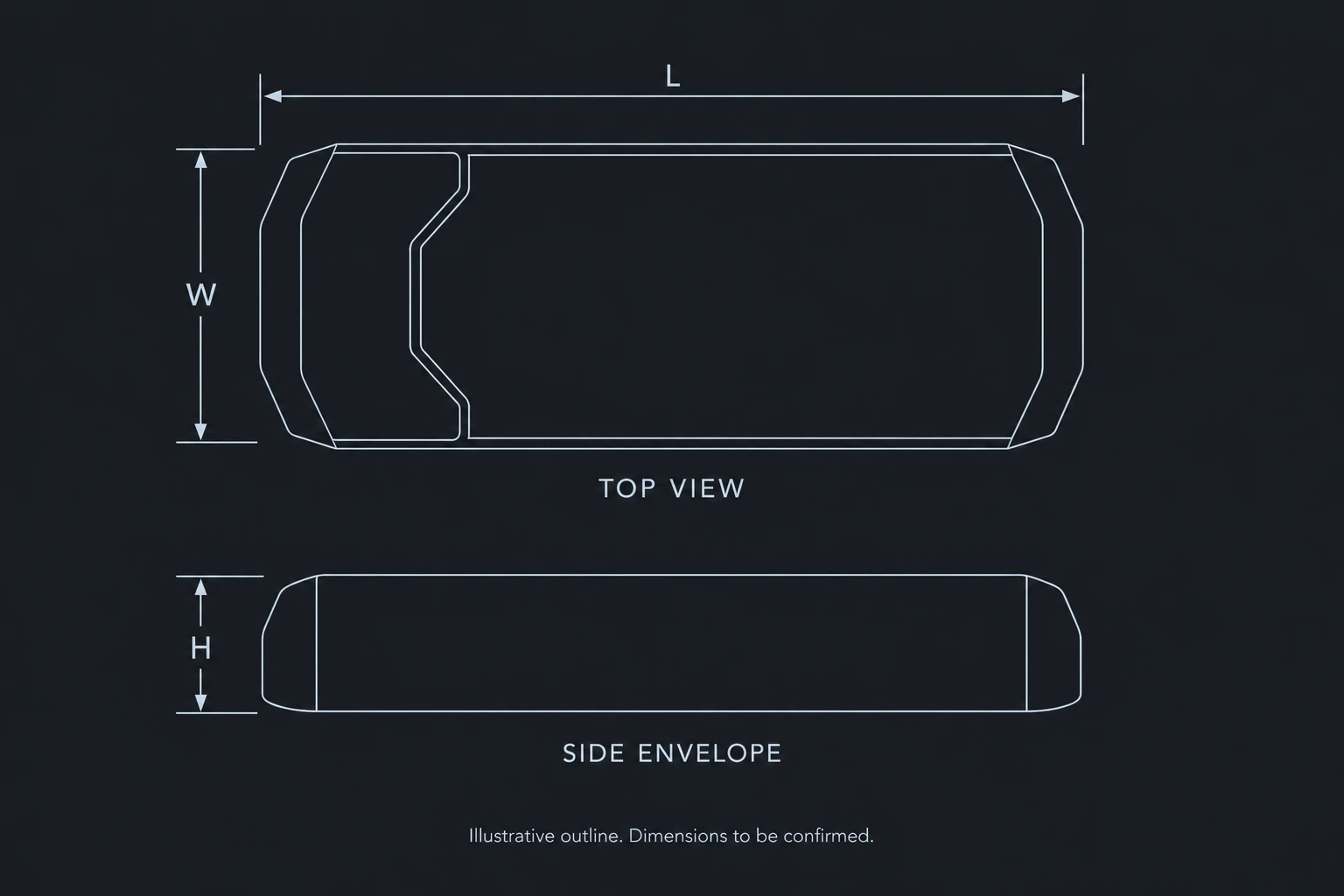

Illustrative receiver outline. L/W/H or diameter/thickness identify dimensions to be confirmed; not to scale.
FIT & CONNECTION
Dimensions
& Interfaces.
Check the fit before confirming the model.
Installation space
The wall control does not require a neutral wire. Confirm wall-box and canopy clearance.
Electrical connection
The receiver needs its specified supply and fan/light connections. The no-neutral statement applies to the wall control; verify wiring with the approved diagram.
