JF-DC-LCD01

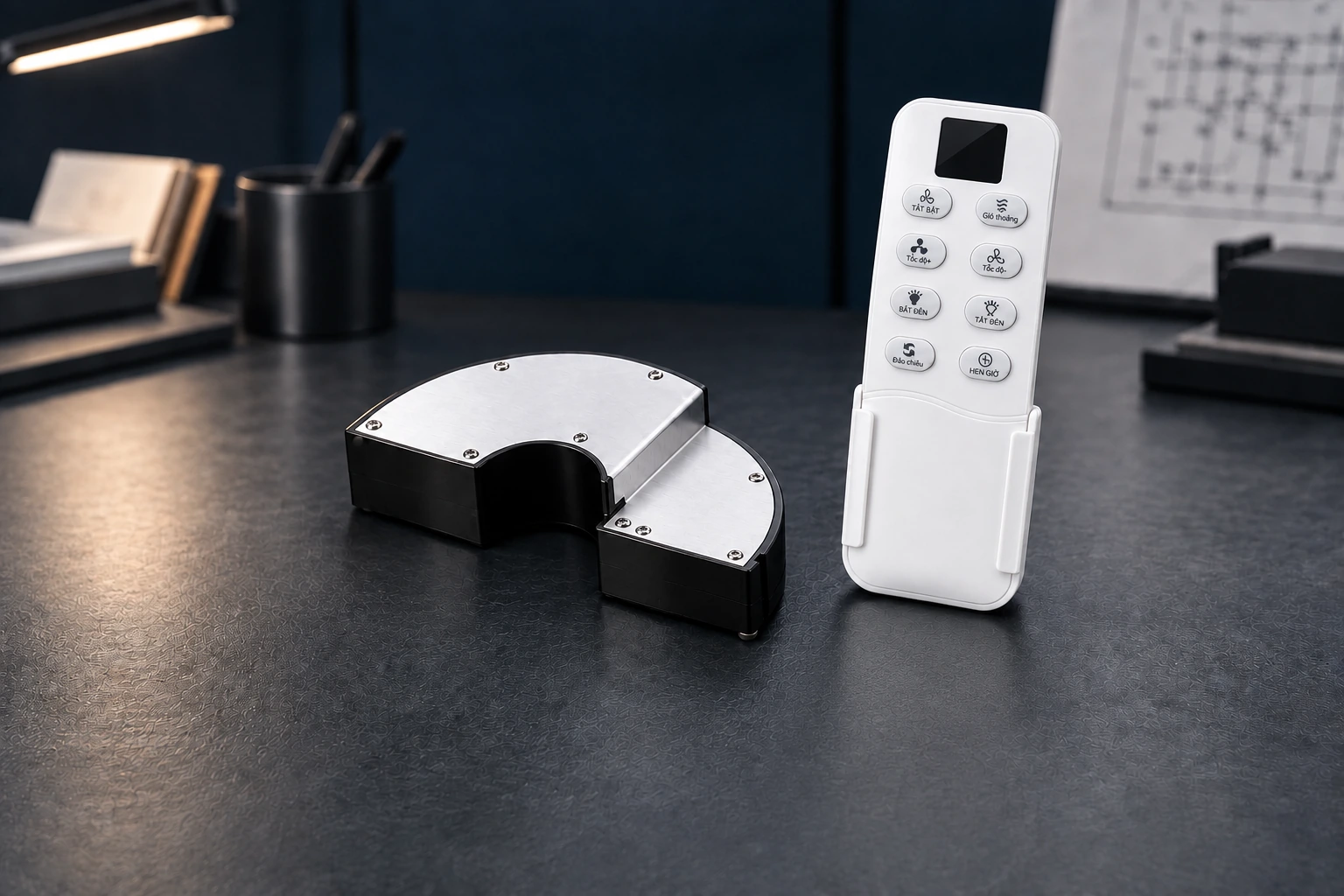

JF-DC-LCD01 LCD Ceiling Fan Remote Control Kit

JF-DC-LCD01 is the catalogue reference used on this website for the digital-display DC ceiling fan remote and receiver kit. It provides six fan speeds, light switching, natural-wind mode, forward/reverse rotation and timer functions. Include this reference and the product image in your enquiry to identify the requested kit.

Motor

DC

Interface

RF remote

Input rating

220–240 V AC, 50/60 Hz

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

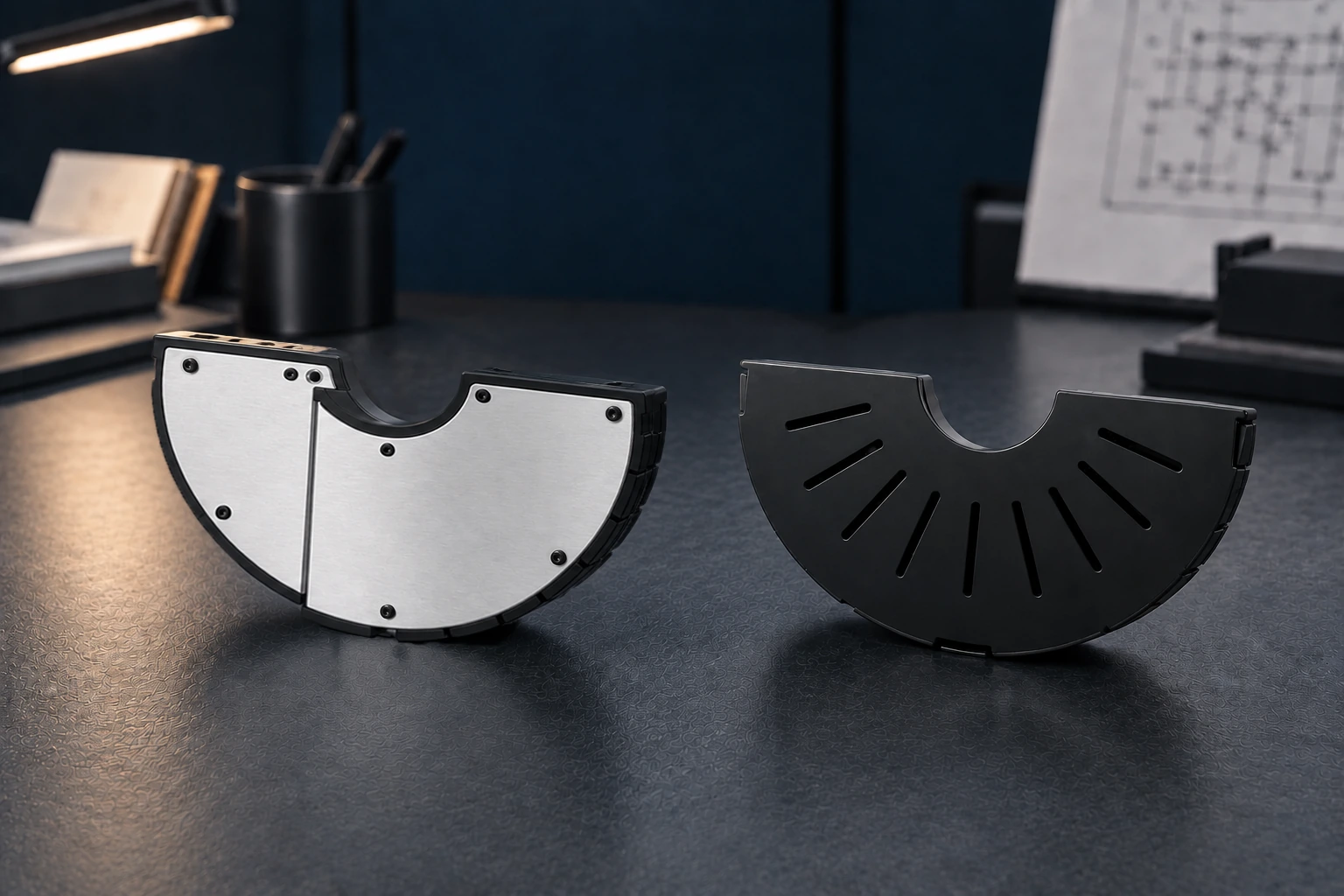

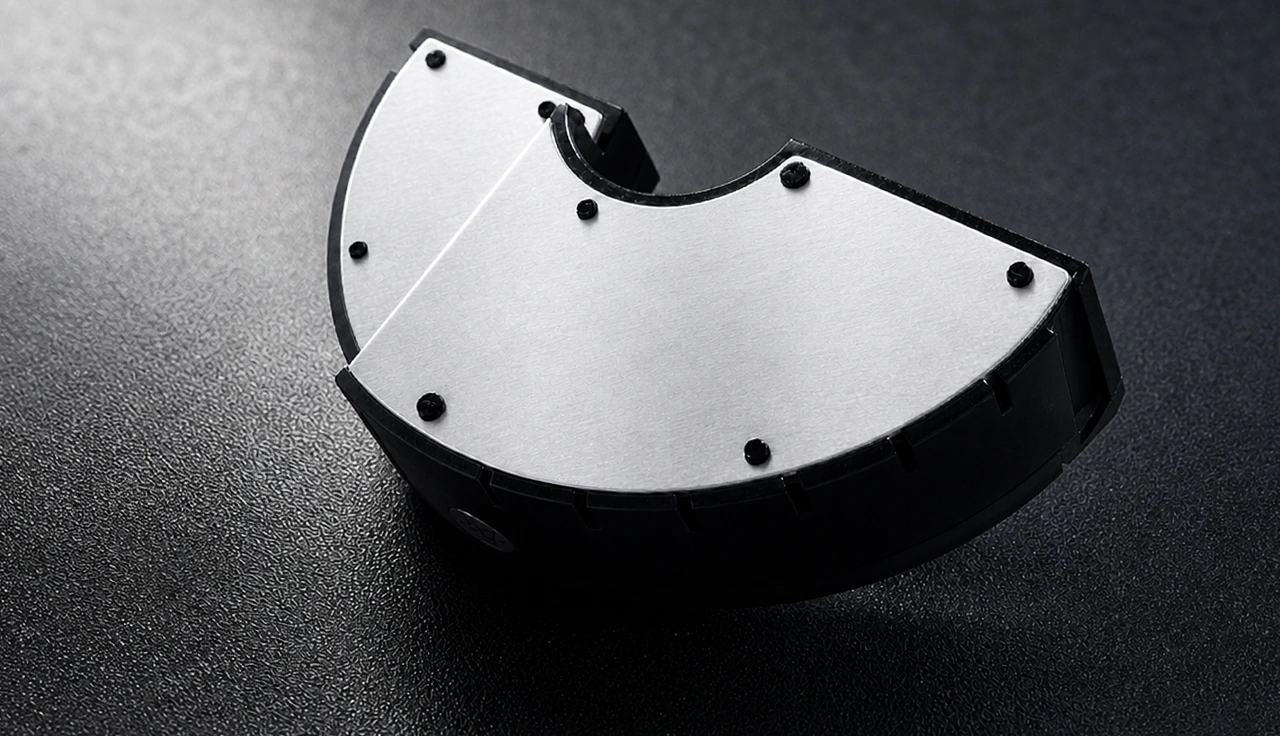

Close-up of the semicircular DC-LCD01 ceiling fan receiver with its metal cover

Parameter

Specification

Motor type

DC

Input voltage

220–240 V AC, 50/60 Hz

Motor / light load

Motor: 65 W max; light: 24 W max

Remote Control Range

30 ft

Fan & light functions

6 fan speeds; light on/off; natural wind; forward/reverse rotation; timer

RF frequency

433 MHz

Housing dimensions

118 × 60 × 29 mm (L × W × H)

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

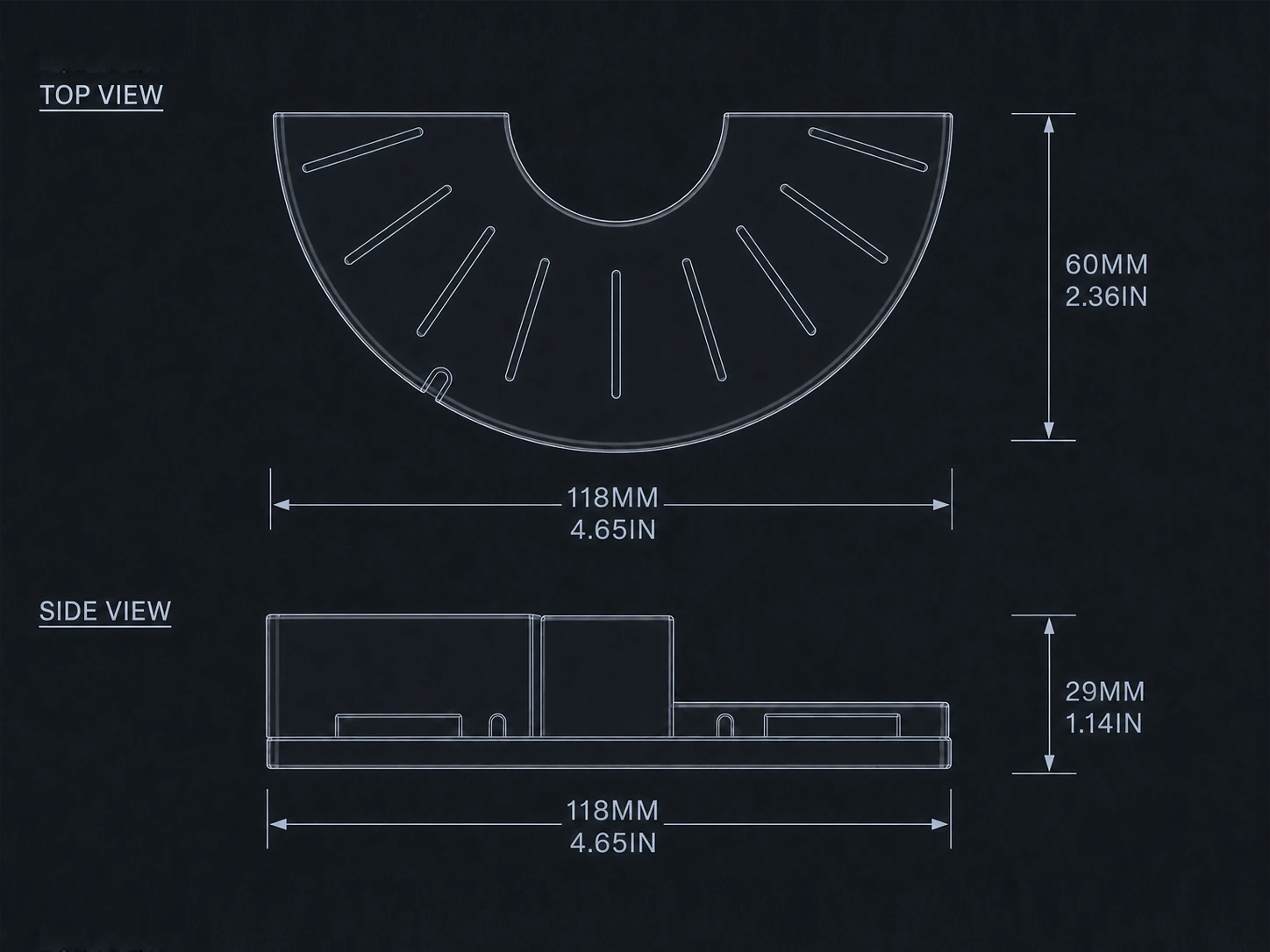

DC-LCD01 ceiling fan receiver drawing: 118 x 60 x 29 mm, with top and side views

Receiver dimensions in millimeters. Allow additional space for cables and connectors.

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

The receiver measures 118 × 60 × 29 mm. Check the available housing space and allow additional room for connectors and cable routing.

Electrical connection

This DC motor controller uses 220–240 V AC, 50/60 Hz input. Maximum loads are 65 W for the motor and 24 W for the light. Match the motor and connectors as a system. The lighting function shown for this kit is on/off; for dimming projects, request a configuration review with the lamp or driver specifications.
