JF-DC03
JF-DC03 DC Ceiling Fan Remote Kit with CCT and Dimmer

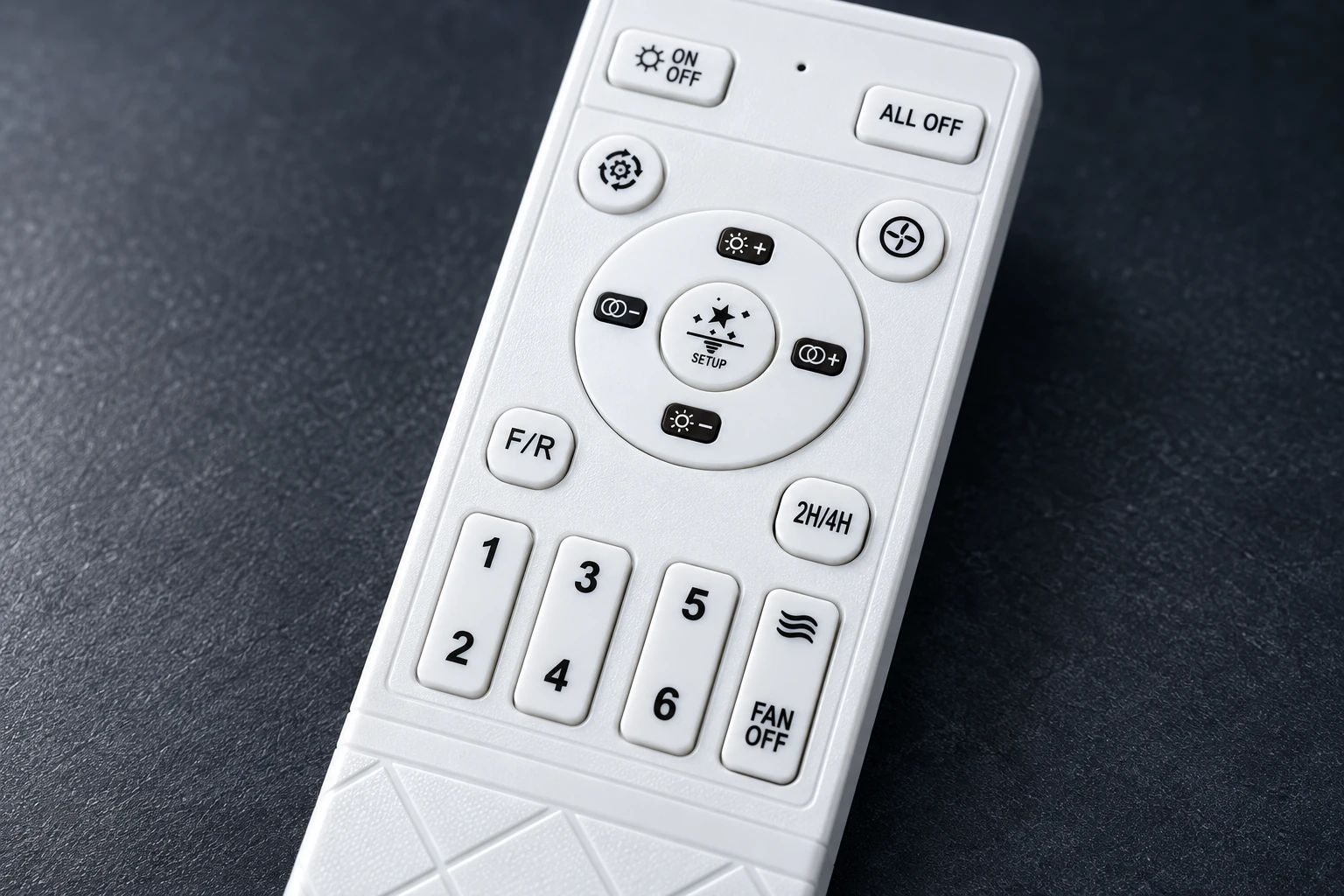

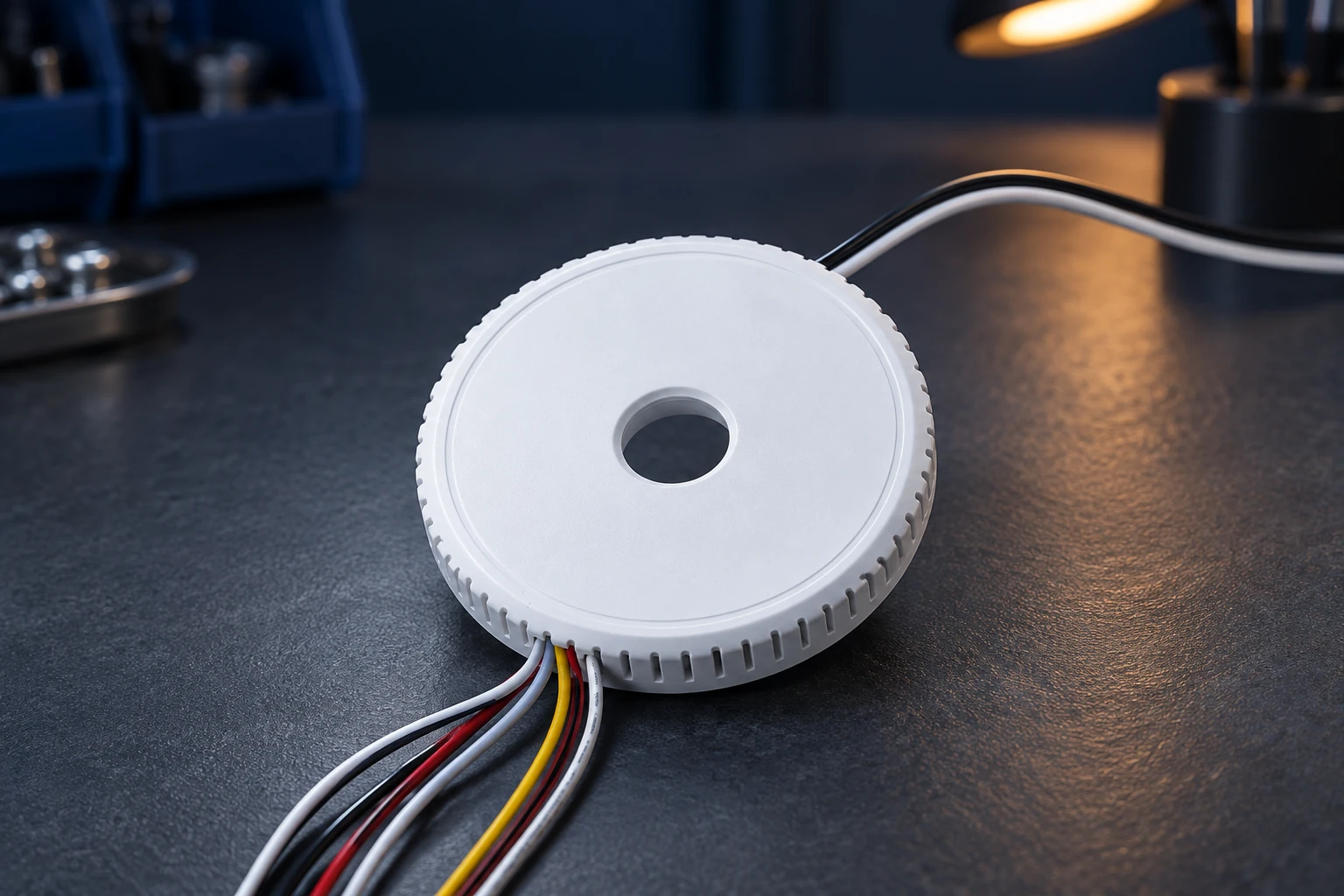

JF-DC03 pairs a white handset with a round DC receiver for six-speed fan operation, forward/reverse, light dimming and three-color selection. The listed version includes a 2/4-hour timer and FanLamp Pro app control. Confirm the motor and compatible lighting together before selecting the kit.
Motor
DC
Interface
Remote + FanLamp Pro app
Parameter
Specification
Motor type
DC
Fan & light functions
6 fan speeds; forward/reverse; light on/off, dimming and 3-color selection; 2/4-hour timer
Final specifications follow the approved model datasheet.
Compare this product family · Selection guide · OEM / ODM review
FIT & CONNECTION
Dimensions
& Interfaces.
Check the fit before confirming the model.
Installation space

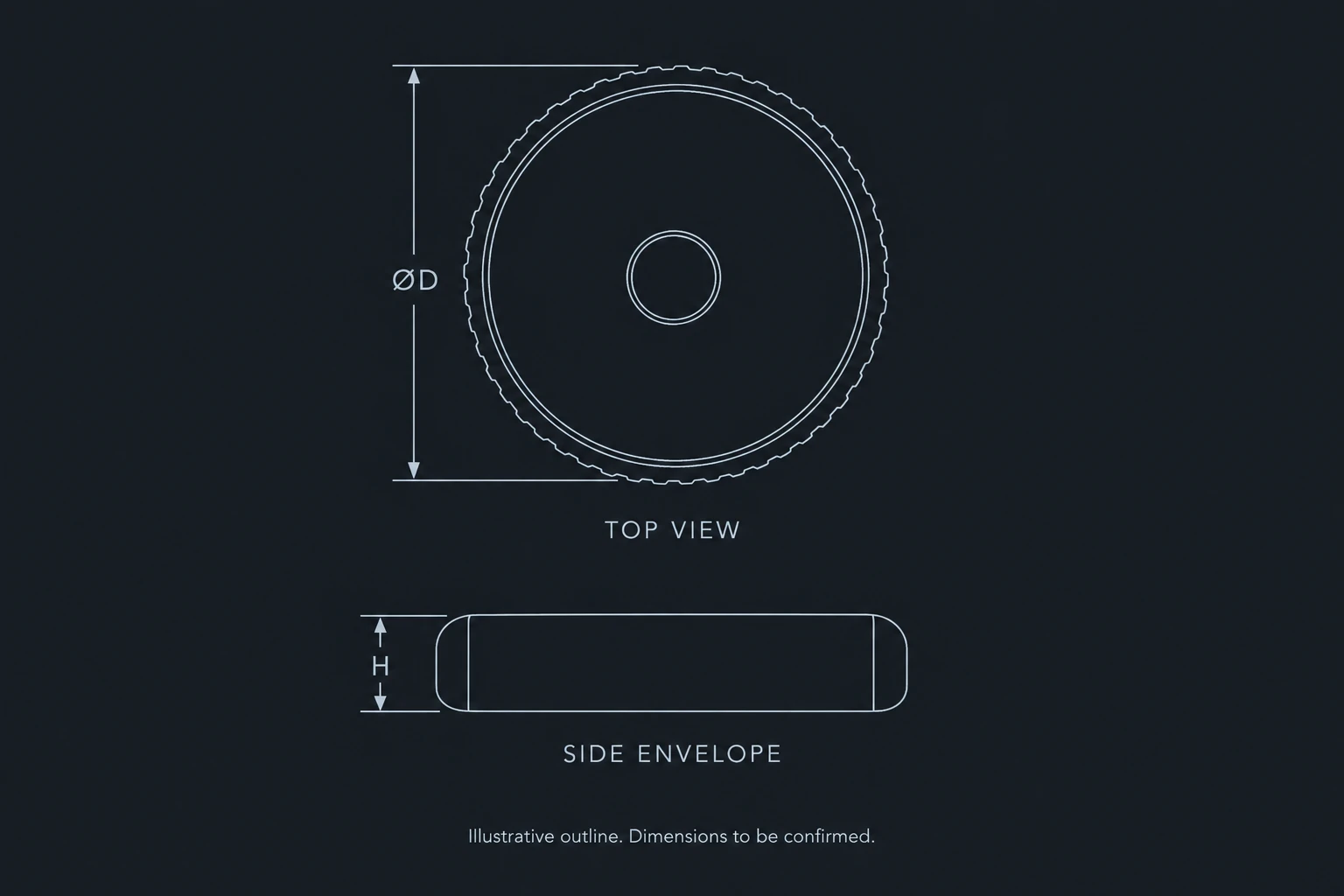

Request the JF-DC03 round-receiver drawing with diameter, depth and connector positions before finalizing the installation. Check the available canopy space and allow clearance for connectors and cable routing. Use a dimensioned drawing to assess fit; the product illustration shows the general outline only.
Electrical connection
For JF-DC03 selection, send your supply voltage, DC motor specifications and light-driver details. Request the input-voltage rating, motor and light load limits, RF frequency and wiring diagram for the kit before connecting it. Check dimming, color-temperature control and timer operation with the matched sample, and specify JF-DC03 or DC03-BK when ordering.
