JF-DC02
JF-DC02 6-Speed DC Ceiling Fan Remote Control Kit

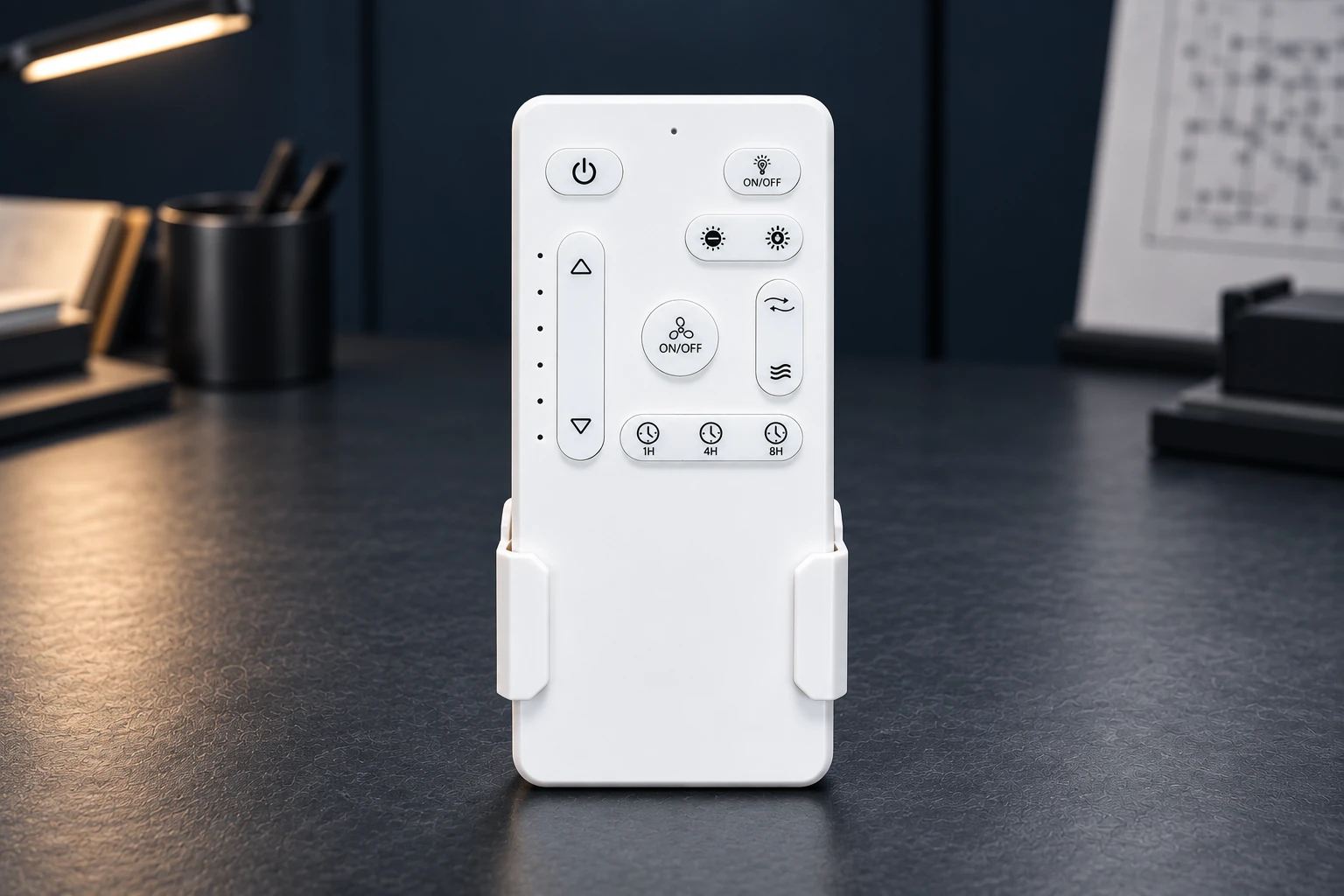

JF-DC02 combines a white handset and matched DC receiver with six-speed fan control, forward/reverse, natural-wind mode, light dimming and a 1/4/8-hour timer. The listed interface includes the FanLamp Pro app. Match the controller to the intended DC motor and lighting system.
Motor
DC
Interface
Remote + FanLamp Pro app
Parameter
Specification
Motor type
DC
Fan & light functions
6 fan speeds; forward/reverse; natural wind; light on/off and dimming; 1/4/8-hour timer
Final specifications follow the approved model datasheet.
Compare this product family · Selection guide · OEM / ODM review
FIT & CONNECTION
Dimensions
& Interfaces.
Check the fit before confirming the model.
Installation space

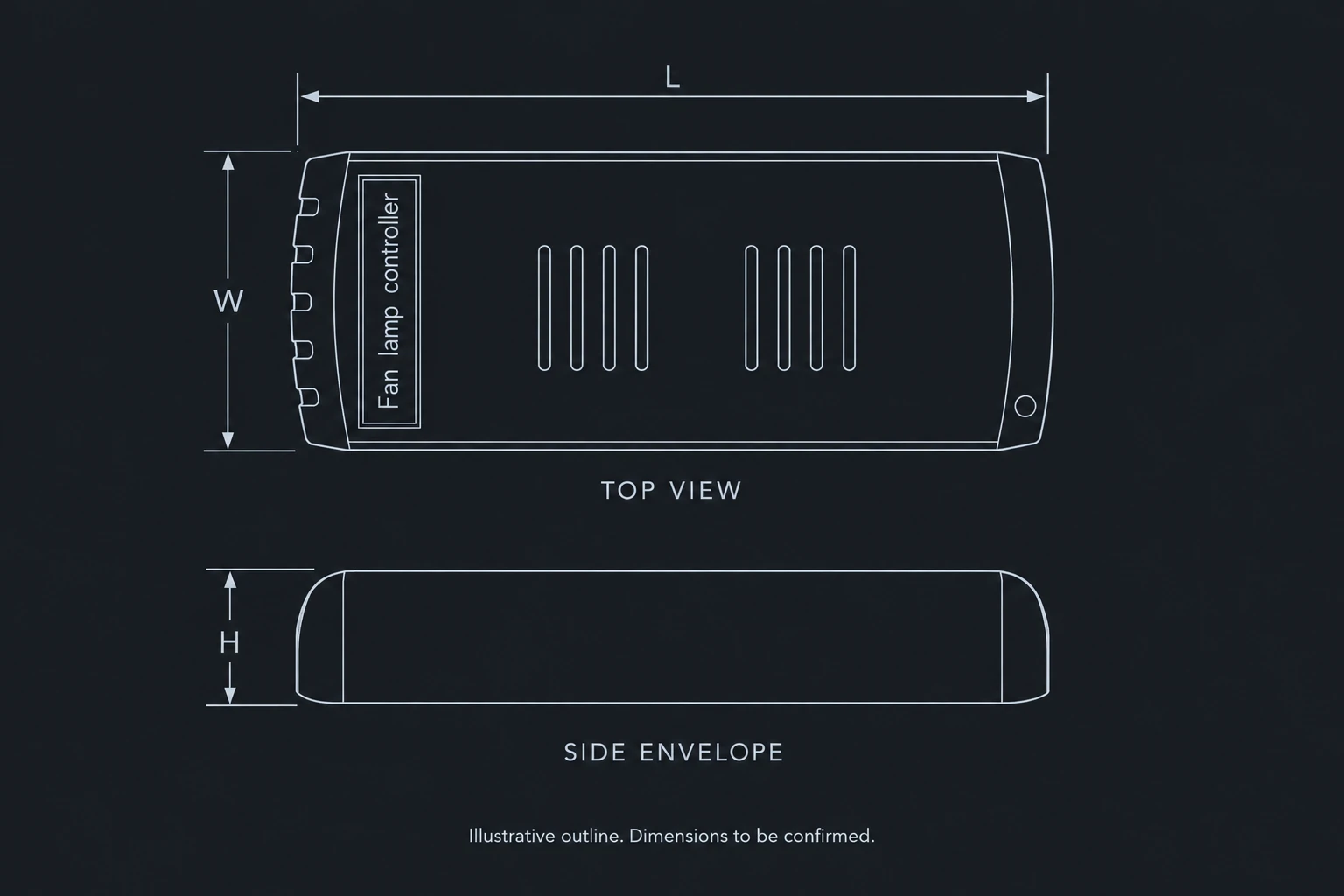

Request the JF-DC02 receiver drawing with overall dimensions and connector positions before finalizing the canopy layout. Check mounting clearance and leave space for connectors and cable routing. Use a dimensioned drawing for installation; the product illustration shows the general outline only.
Electrical connection
For JF-DC02 selection, send your supply voltage, DC motor specifications and light-driver details. Request the input-voltage rating, motor and light load limits, RF frequency and wiring diagram for the kit before connecting it. Check motor operation, dimming, pairing and required app functions with the matched sample.
