JF-T16

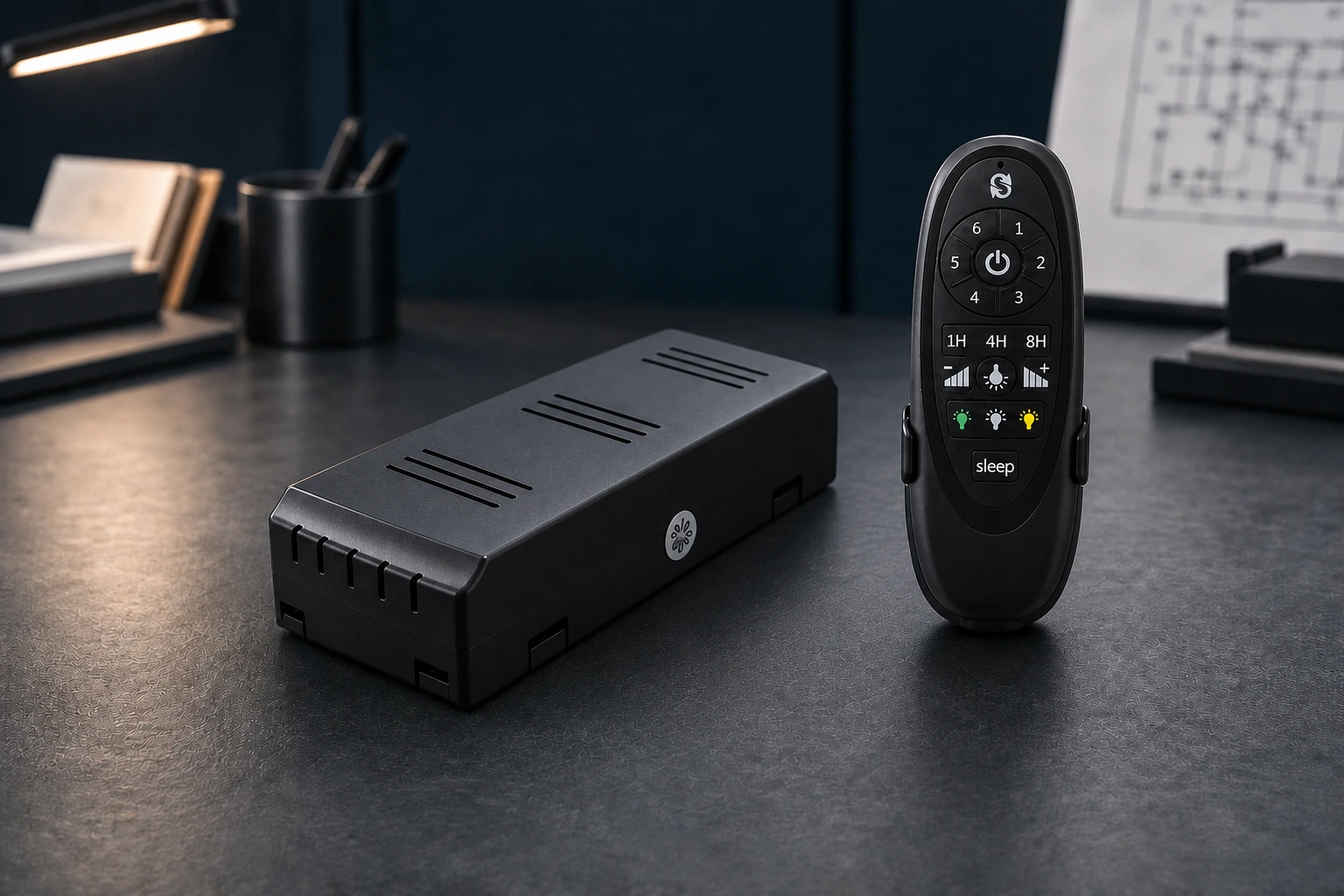

JF-T16 6-Speed DC Ceiling Fan Remote Kit with Dimming and CCT
JF-T16 is a six-speed DC ceiling fan remote and receiver kit with forward/reverse, sleep mode and timer control. Its lighting functions include on/off, brightness adjustment and three color temperatures. This kit uses 433 MHz RF control. For projects requiring app or Wi-Fi control, include the connected-control requirements in your enquiry.
Motor
DC
Interface
RF remote
Input rating
220–240 V AC, 50/60 Hz
Parameter
Specification
Motor type
DC
Input voltage
220–240 V AC, 50/60 Hz
Motor / light load
Motor: 48 W max; light: 18 W max
Remote Control Range
30 ft
Fan & light functions
6 fan speeds; light on/off; sleep mode; timer; forward/reverse; brightness adjustment; 3 color temperatures
RF frequency
433 MHz
Housing dimensions
130 × 60 × 26 mm (L × W × H)
Final specifications follow the approved model datasheet.
Compare this product family · Selection guide · OEM / ODM review

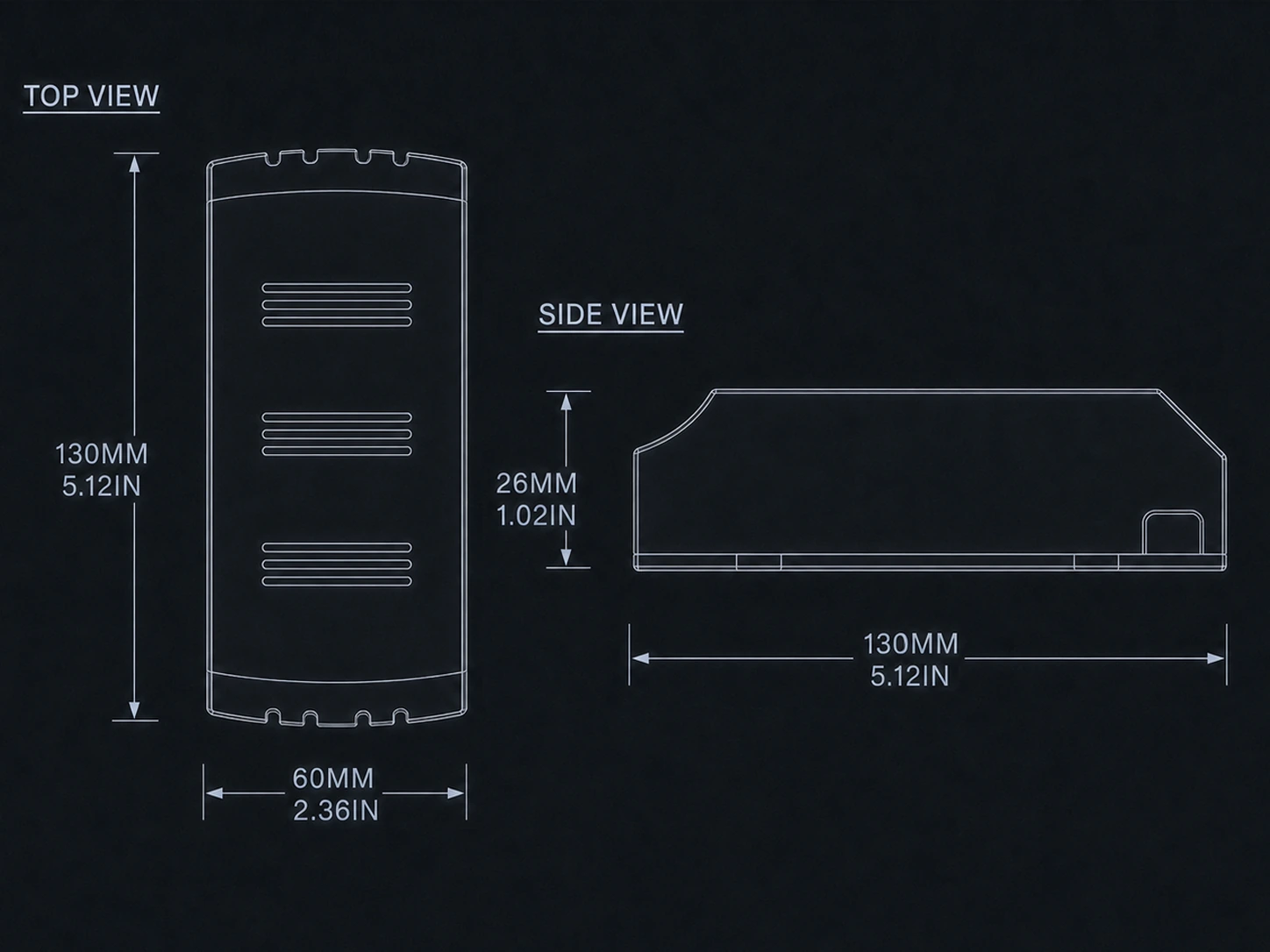

Receiver dimensions in millimeters. Allow additional space for cables and connectors.
FIT & CONNECTION
Dimensions
& Interfaces.
Check the fit before confirming the model.
Installation space

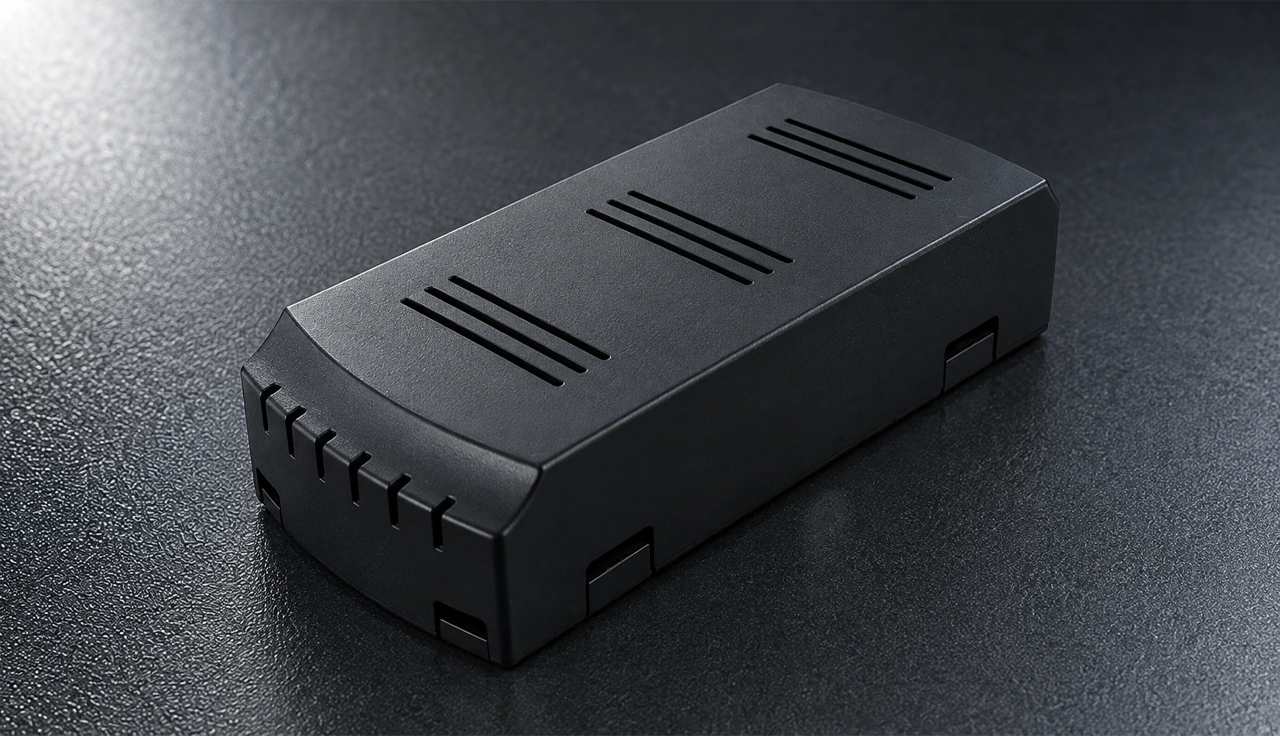

The receiver measures 130 × 60 × 26 mm. Check the fan housing with additional clearance for connectors and cables. Use these model-specific dimensions when comparing JF-T16 with other DC receivers.
Electrical connection
The controller accepts 220–240 V AC, 50/60 Hz input for the matched DC motor system. Maximum loads are 48 W for the motor and 18 W for the light. Confirm motor connections, the dimmable three-color light driver, pairing, sleep behavior and timer settings with the selected sample.
