JF-028 Black

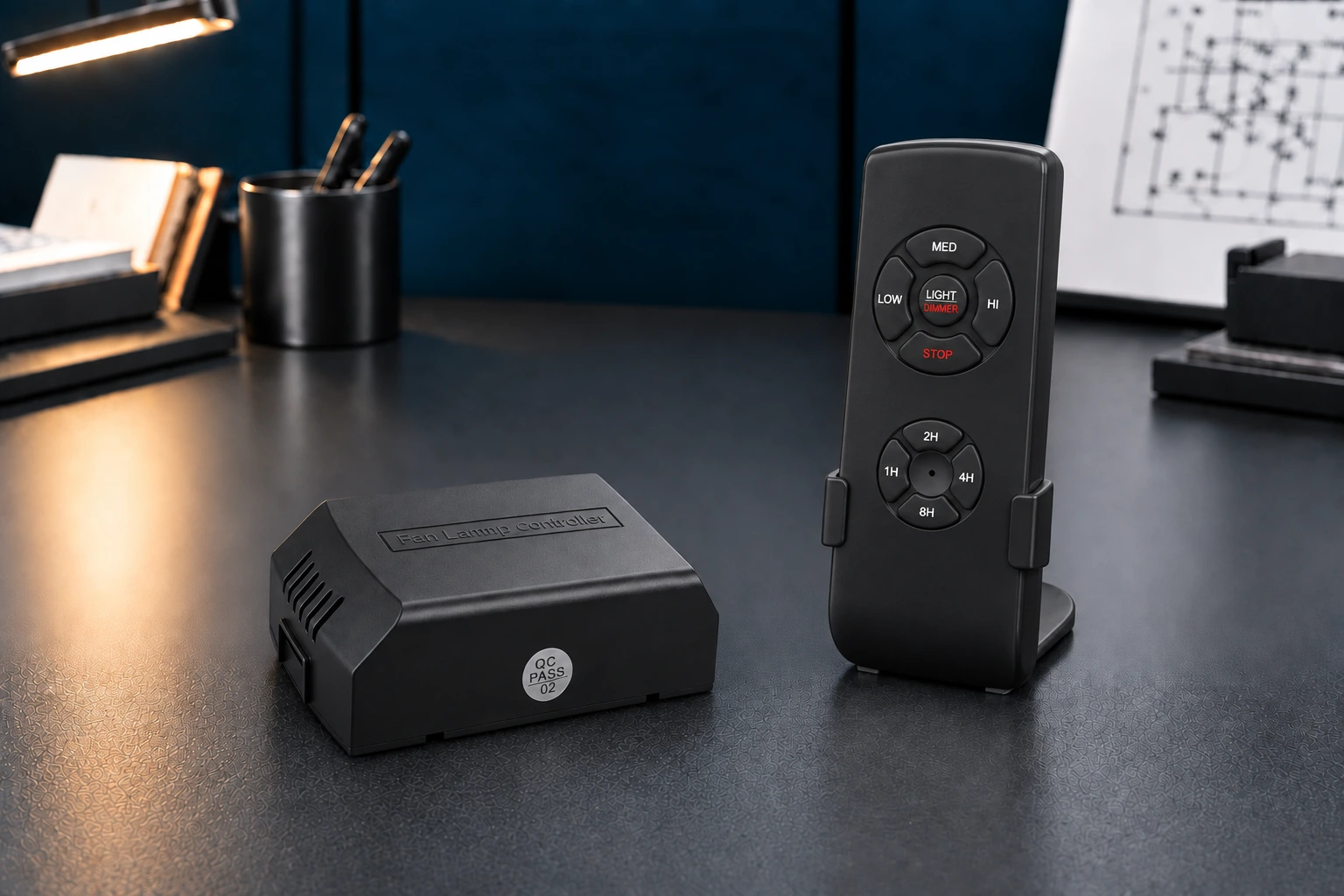

JF-028 Black AC Ceiling Fan Remote and Receiver Kit with Light Dimmer

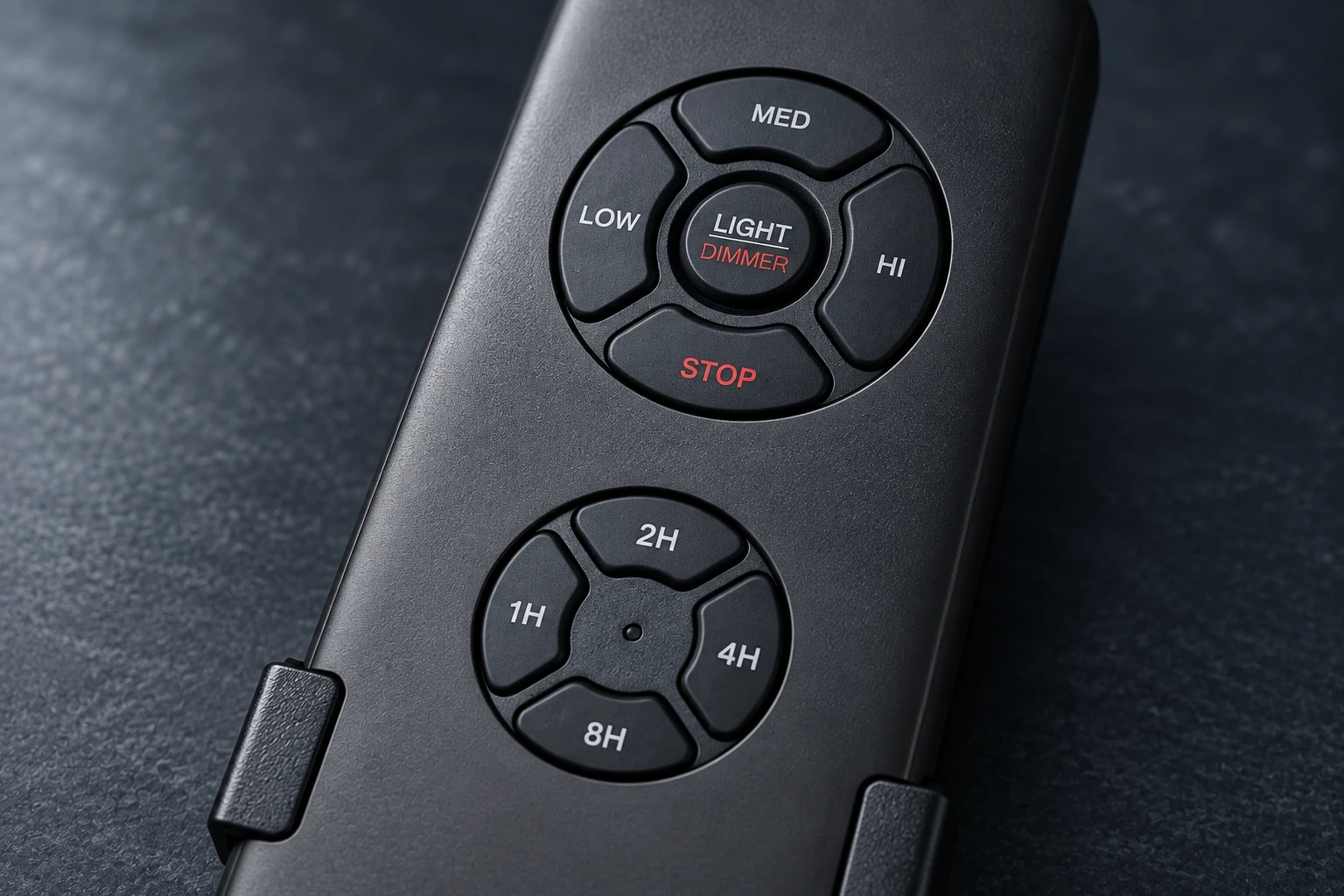

JF-028 Black pairs a black handset with an AC receiver for three-speed fan control, light switching, light dimming and timer operation. It shares the published electrical ratings and functions of the JF-028 listing. Use JF-028 Black as the order reference and confirm the actual receiver and firmware supplied.

Motor

AC

Interface

RF remote; Wi-Fi; Alexa

Input rating

110–120 V AC, 50/60 Hz

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

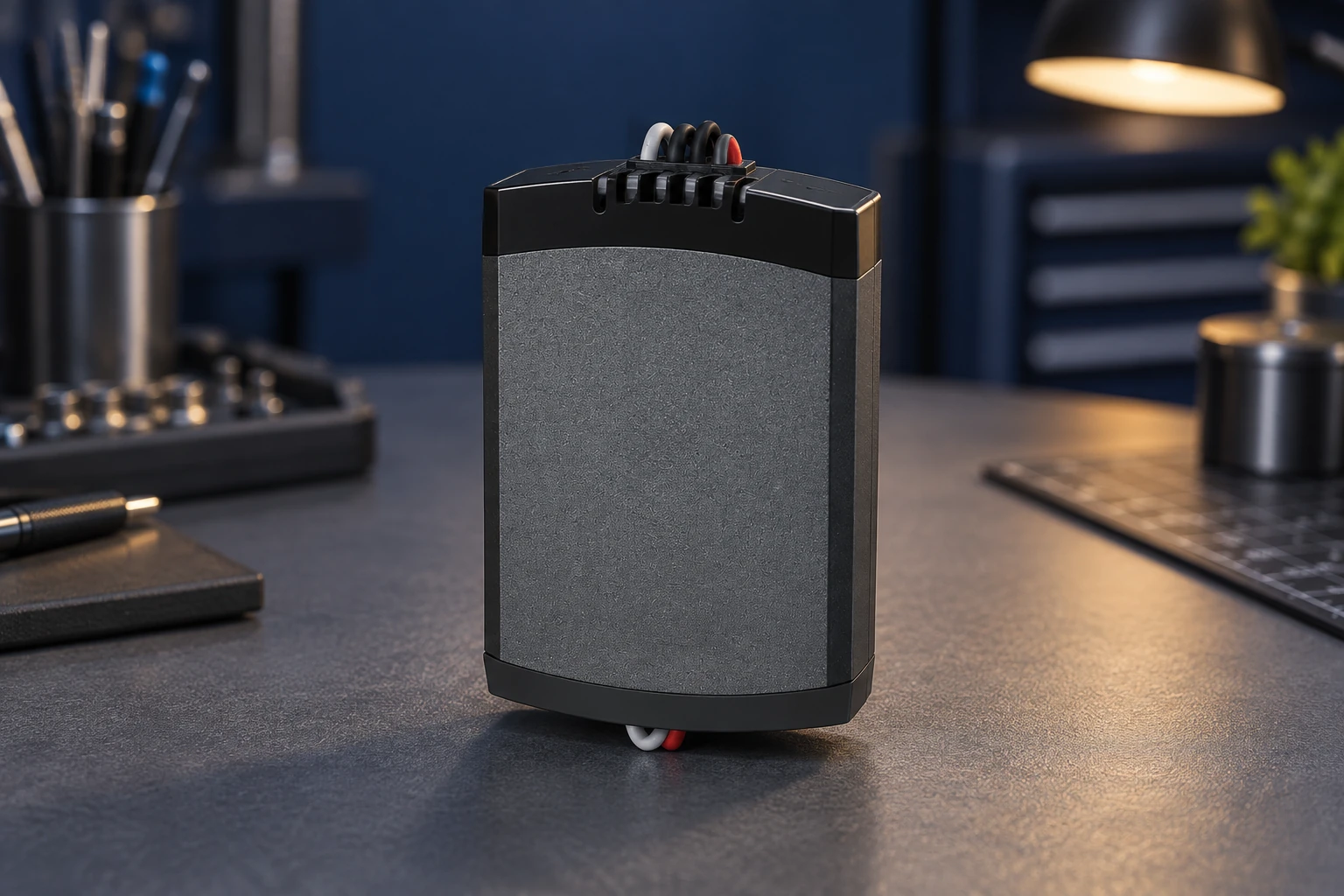

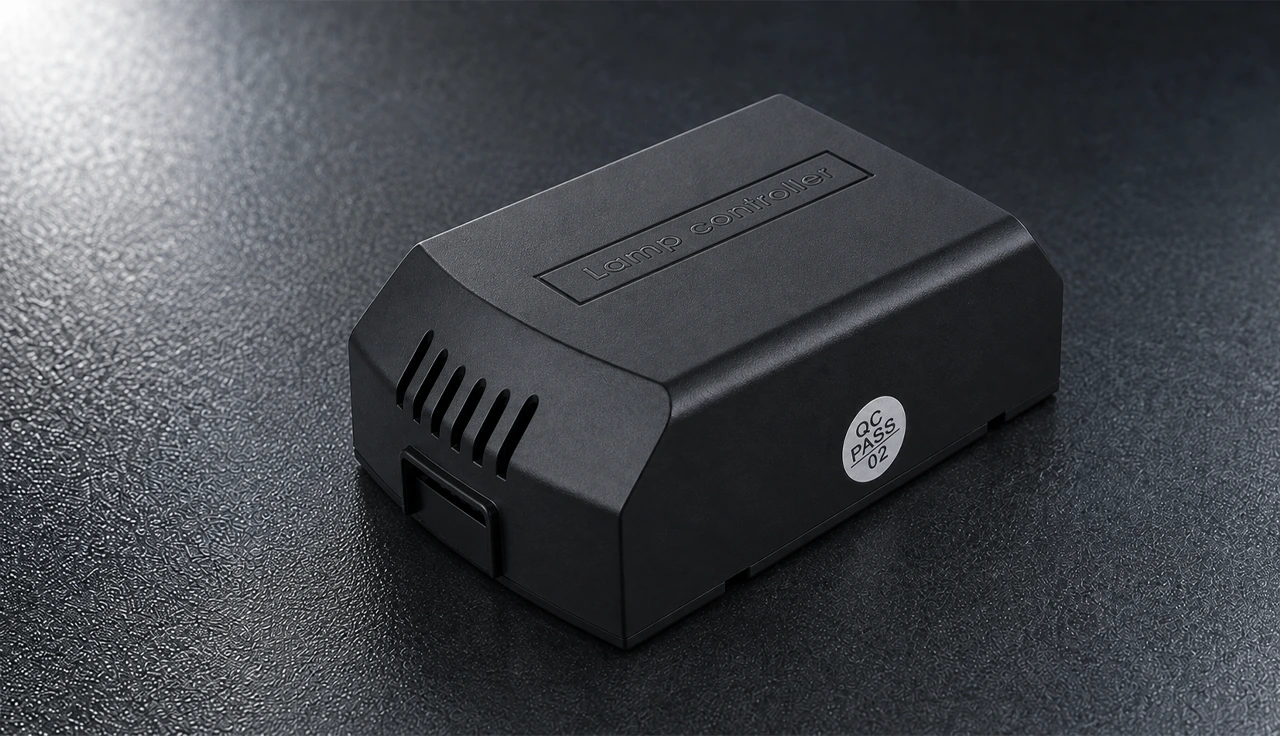

Close-up of the black receiver housing shown with 016, 018 and 028 AC ceiling fan kits

Parameter

Specification

Motor type

AC

Input voltage

110–120 V AC, 50/60 Hz

Motor / light load

Motor: 1 A max; light: 180 W max

Remote Control Range

30 ft

Fan & light functions

3 fan speeds; light on/off; brightness adjustment; timer; Wi-Fi; Alexa

RF frequency

433 MHz

Housing dimensions

70 × 53 × 25 mm (L × W × H)

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

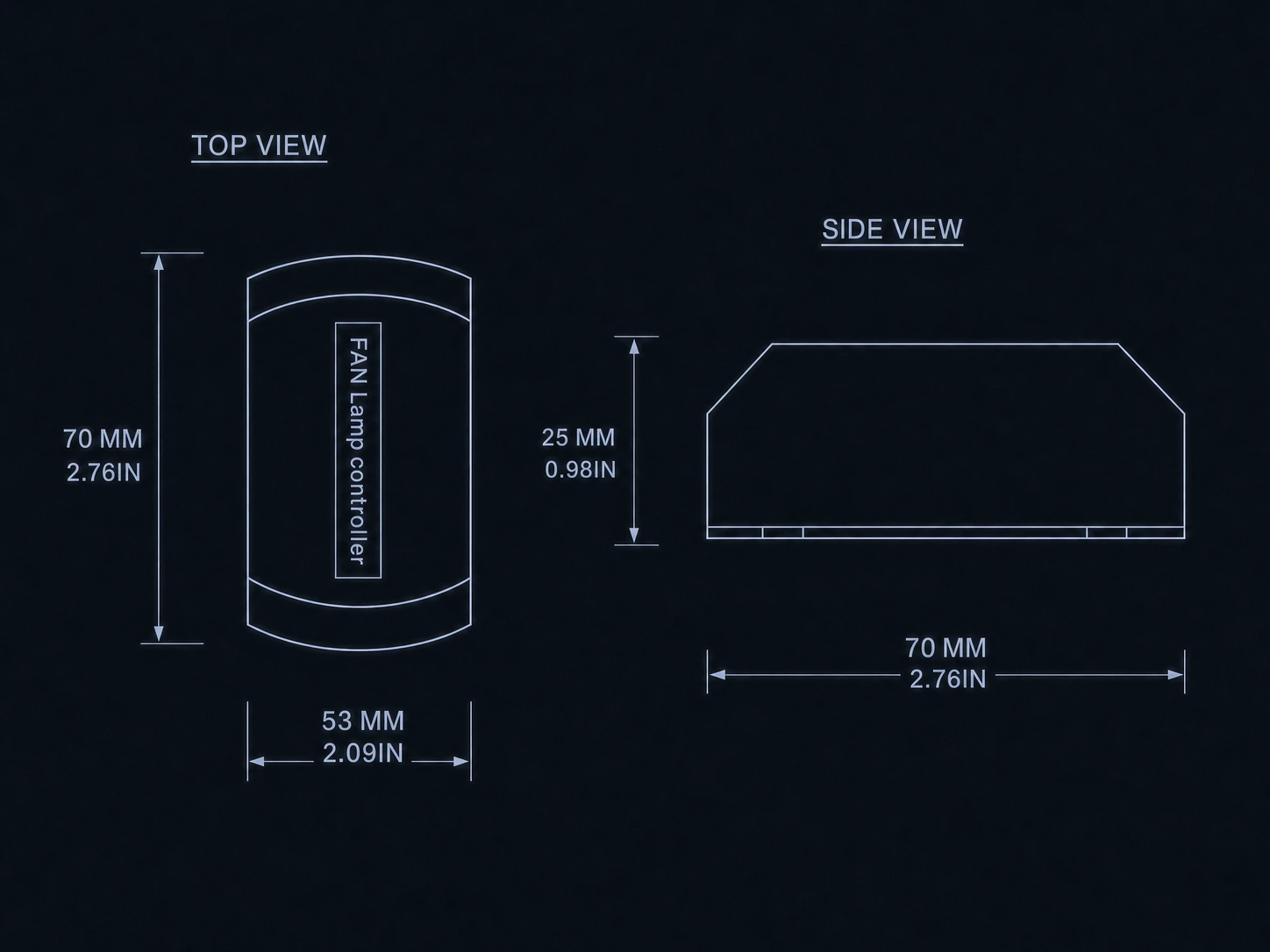

Receiver drawing for 016, 018 and 028 AC ceiling fan kits: 70 x 53 x 25 mm, with top and side views

Receiver dimensions in millimeters. Allow additional space for cables and connectors.

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

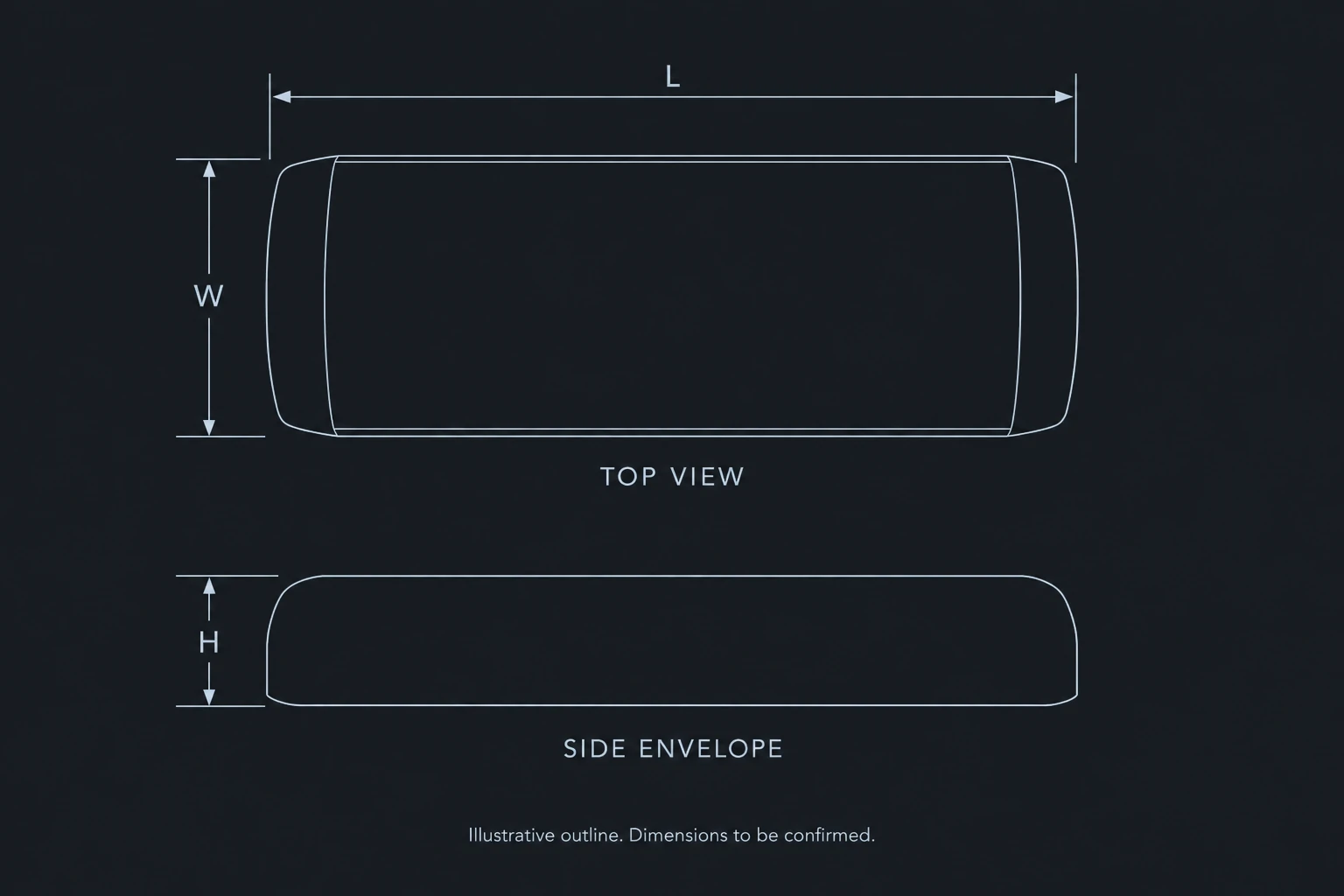

The receiver measures 70 × 53 × 25 mm. Allow additional room for its connectors and cable routing. Check the chosen handset finish and receiver outline against your installation rather than assuming that all 028-labelled kits are interchangeable.

Electrical connection

Input is 110–120 V AC, 50/60 Hz. Maximum loads are 1 A for the motor and 180 W for the light, with 433 MHz RF control. Check the lamp or driver for dimming compatibility and request the timer settings for the supplied kit. For Wi-Fi or Alexa requirements, request the complete hardware list and setup instructions for the ordered configuration.
