JF-FC-5AC

JF-FC-5AC 5-Speed AC Ceiling Fan Remote Control Kit

JF-FC-5AC is an AC ceiling fan remote kit with a matte-black handset, wall holder and U-shaped receiver. Five speed settings, fan off, speed memory and an off timer support fan-speed control. Include your required timer settings and any lighting-control requirements in the project enquiry.

Motor

AC

Interface

RF remote

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

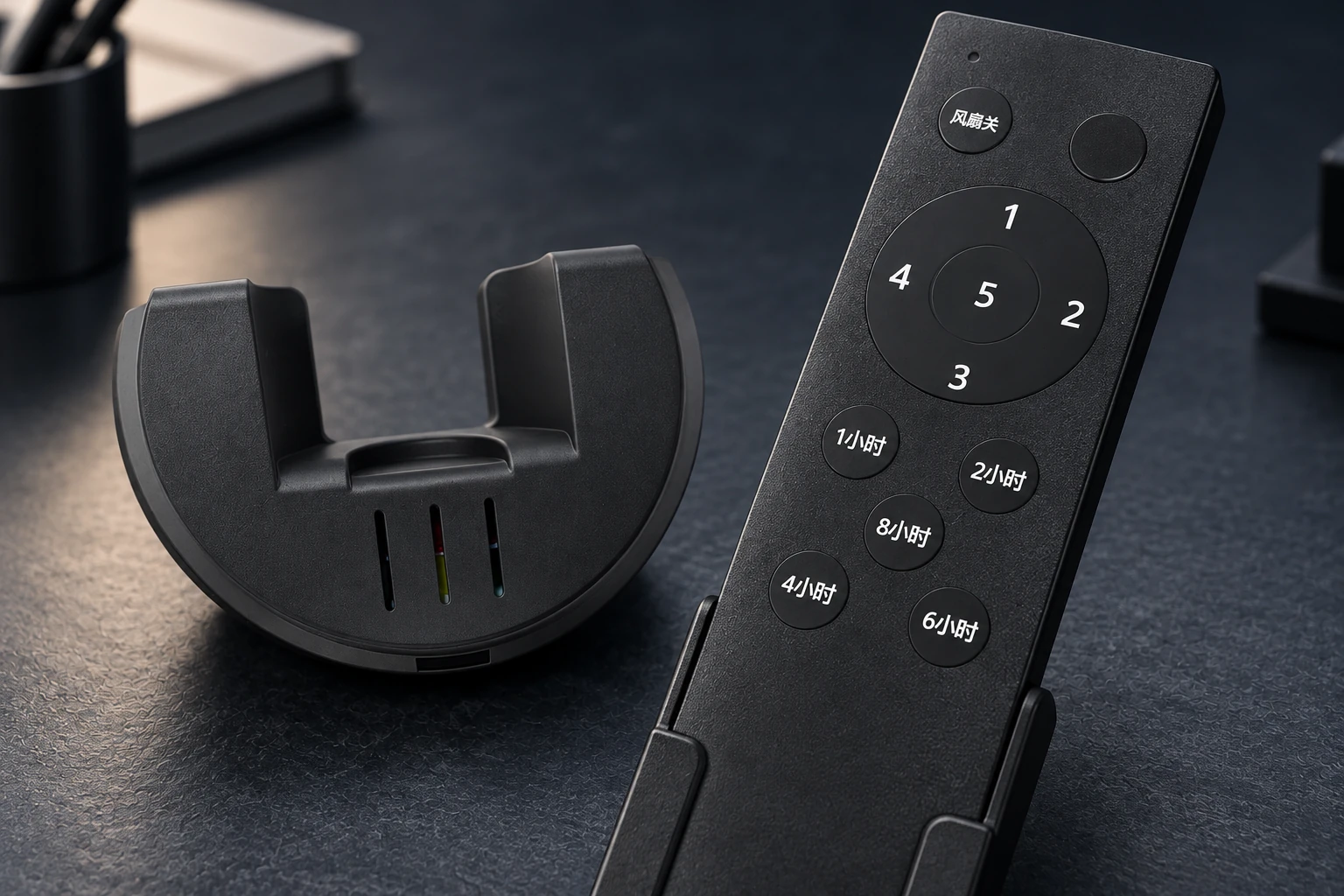

Close-up of the black FC-5AC curved ceiling fan receiver housing

Parameter

Specification

Motor type

AC

Fan & light functions

5 fan speeds; fan off; speed memory; off timer

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

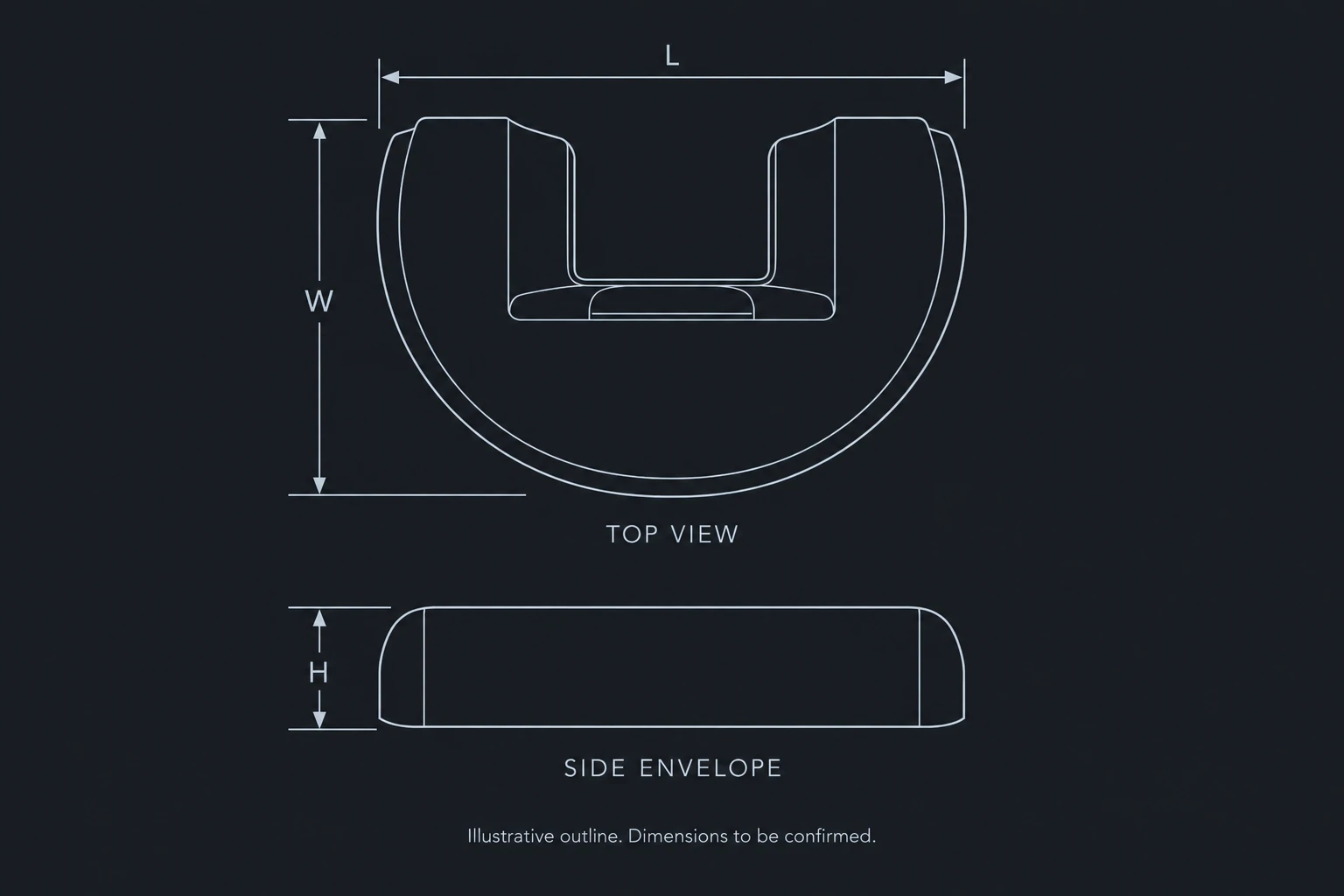

FC-5AC curved receiver top and side outline illustration; dimensions require confirmation

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

Request the JF-FC-5AC U-shaped receiver drawing with overall dimensions and connector positions. Check the available motor-housing or canopy space, including clearance for connectors and cable routing, before finalizing the mounting layout.

Electrical connection

Send your AC motor specifications and supply voltage with the JF-FC-5AC enquiry. Request the input-voltage rating, maximum motor load, wiring diagram, pairing instructions and timer settings for the kit. Check all five speed steps, speed memory and timer operation with the intended motor during sample evaluation.
