JF-99770

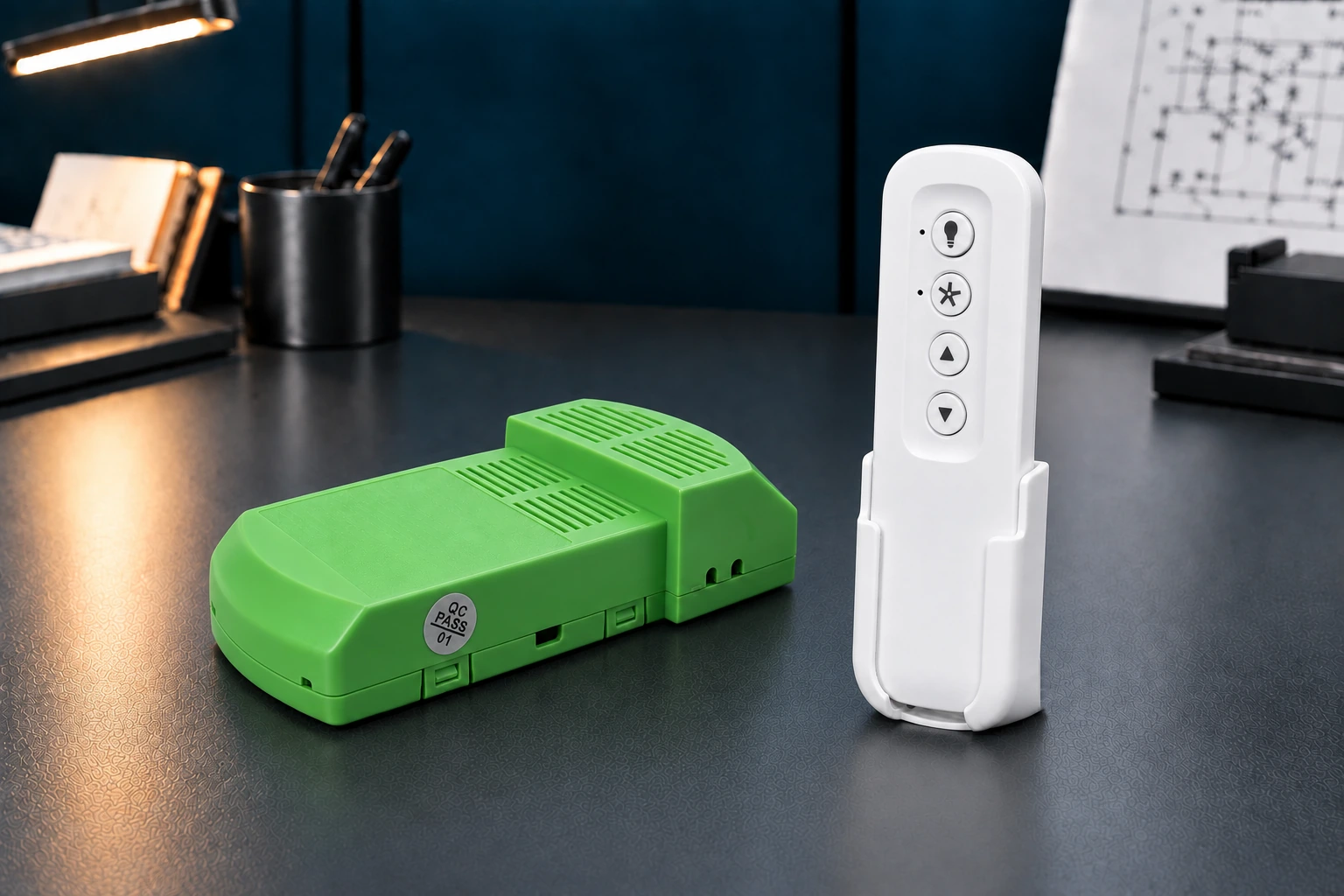

JF-99770 RF Ceiling Fan Remote and Receiver Kit for AC Fans

JF-99770 pairs a 433 MHz RF handset with an AC ceiling fan receiver for three fan speeds, light switching and brightness adjustment. The range also includes Gray and Semi-Circle model records with the same published ratings. Use the exact model reference and product images to identify the requested version.

Motor

AC

Interface

RF remote

Input rating

110–120 V AC, 50/60 Hz

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

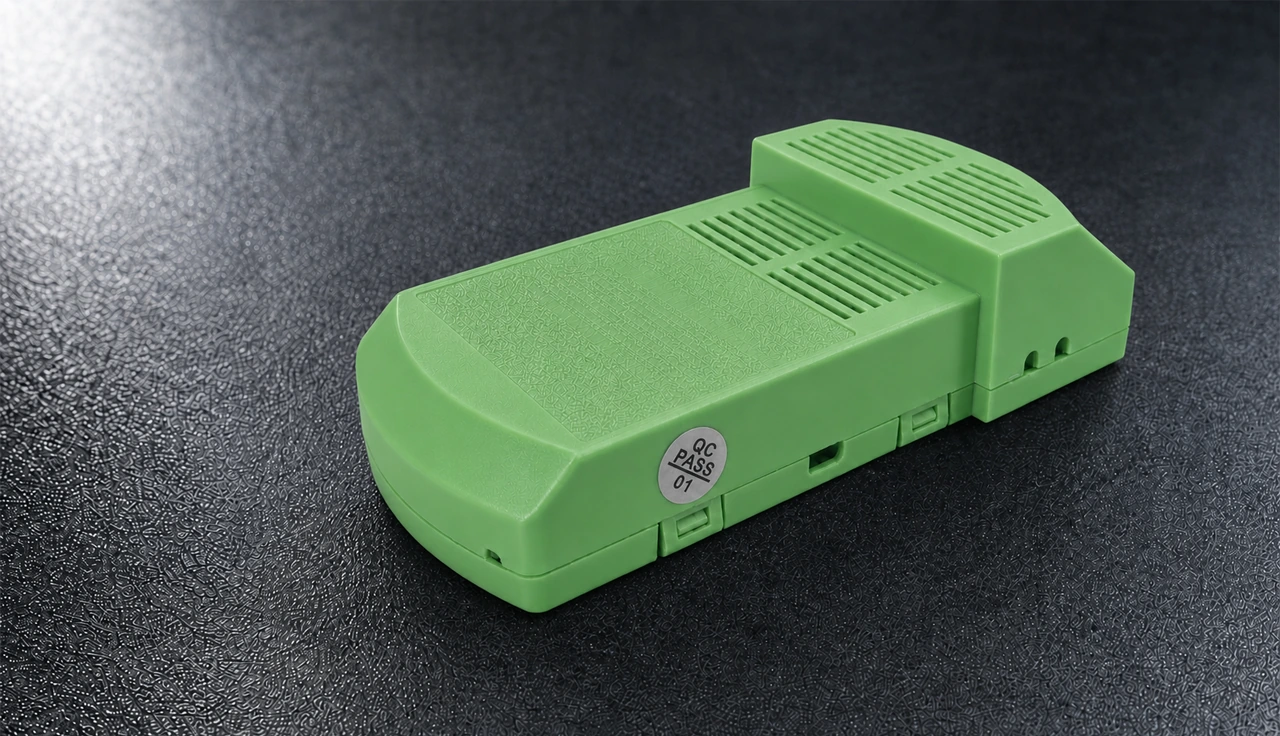

Close-up of the green receiver housing shown with 99770 series AC ceiling fan kits

Parameter

Specification

Motor type

AC

Input voltage

110–120 V AC, 50/60 Hz

Motor / light load

Motor: 1 A max; light: 180 W max

Remote Control Range

30 ft

Fan & light functions

3 fan speeds; light on/off; brightness adjustment

RF frequency

433 MHz

Housing dimensions

115 × 50 × 28 mm (L × W × H)

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

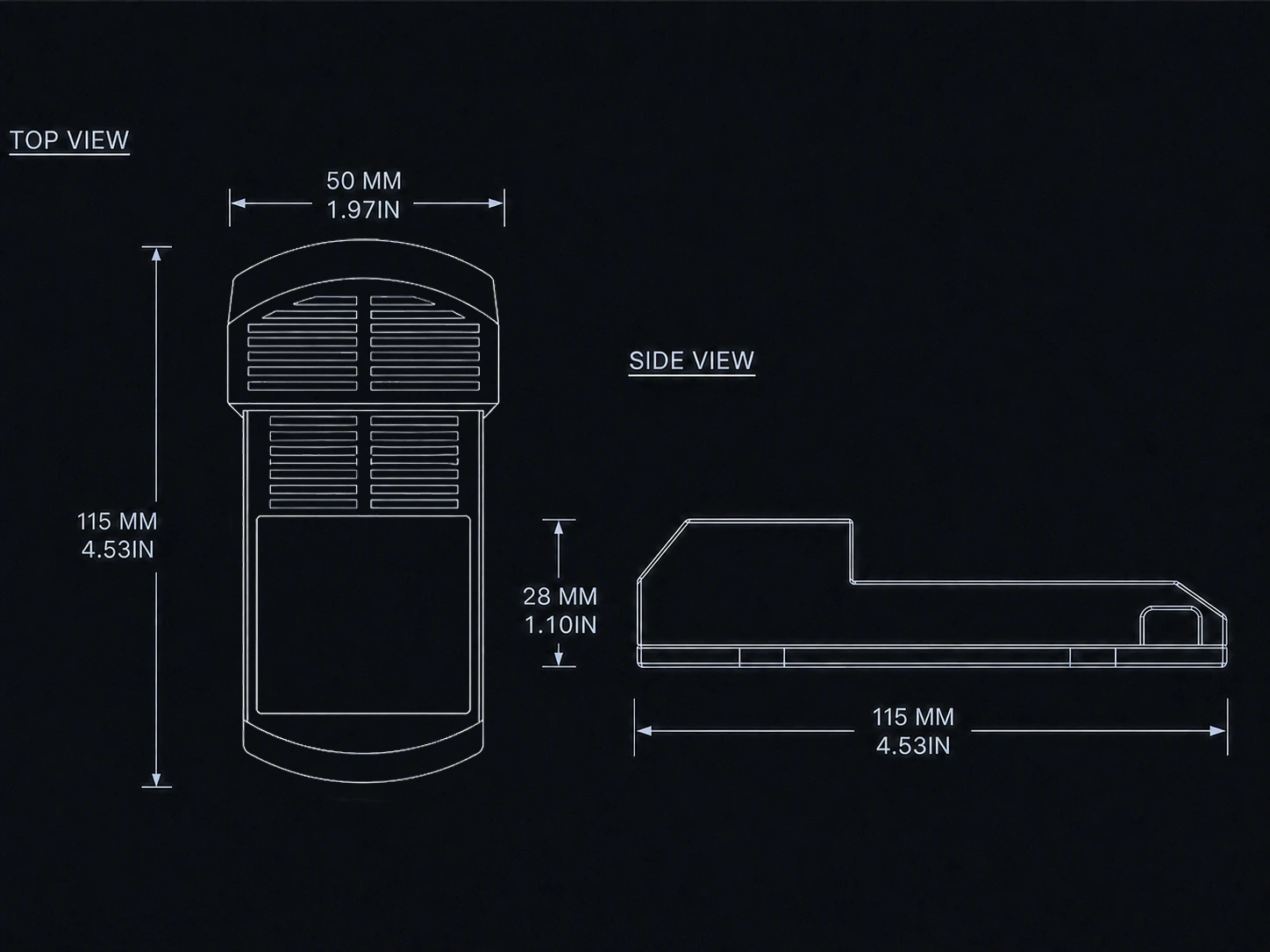

99770 series ceiling fan receiver drawing: 115 x 50 x 28 mm, with top and side views

Receiver dimensions in millimeters. Allow additional space for cables and connectors.

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

The listed receiver dimensions are 115 × 50 × 28 mm. Include connector and wiring clearance in the canopy check. For Gray or Semi-Circle selections, confirm the actual housing and approved drawing before treating the variants as interchangeable.

Electrical connection

Input is 110–120 V AC, 50/60 Hz. Maximum loads are 1 A for the motor and 180 W for the light. Confirm dimmable lamp or driver compatibility and the transmitter/receiver coding. A JF-99770 name or 433 MHz frequency does not establish compatibility with another brand or receiver.
