JF-99770 Semi-Circle

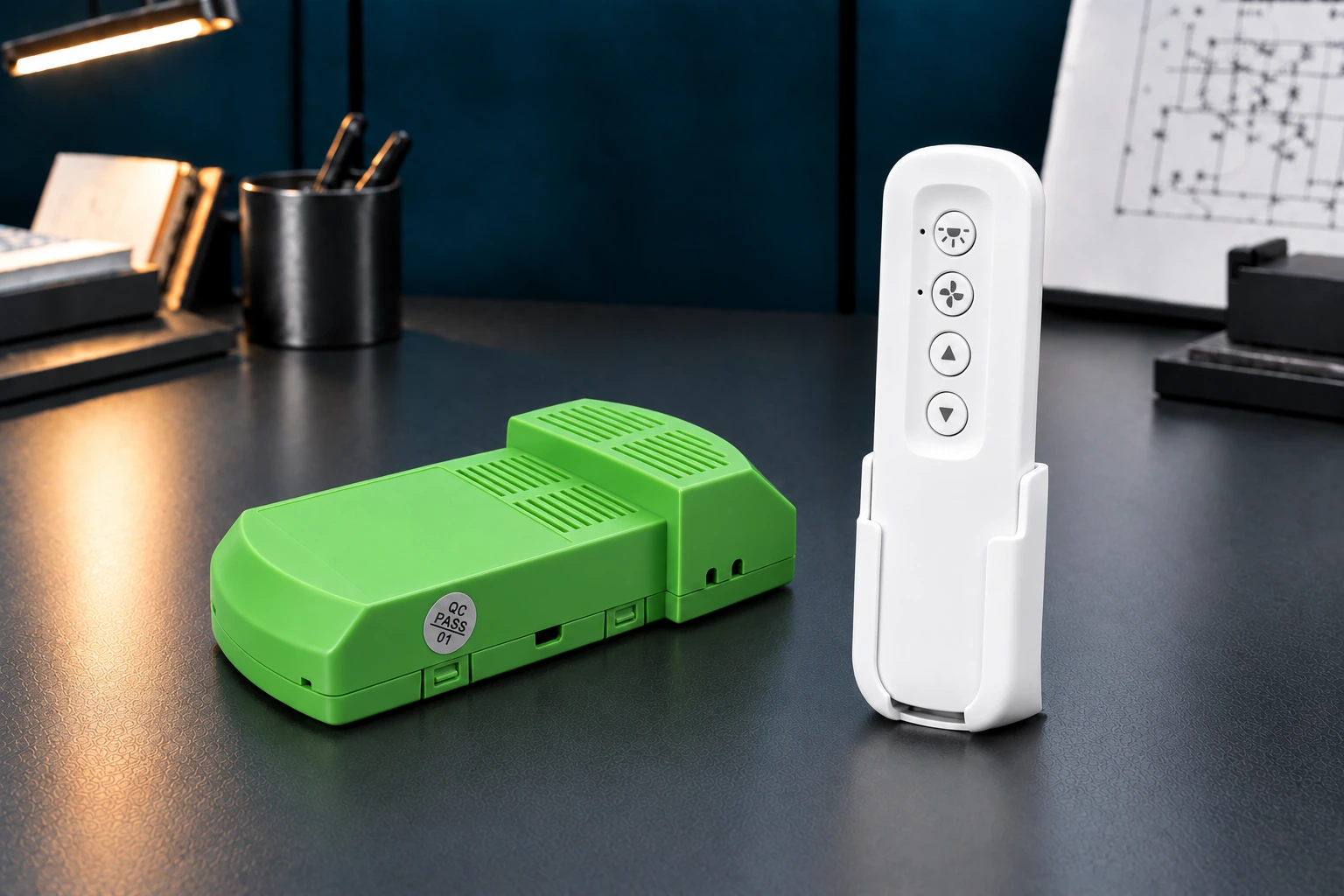

JF-99770 Semi-Circle AC Ceiling Fan Remote and Receiver Kit

JF-99770 Semi-Circle is a named version of the JF-99770 AC remote-and-receiver range. The published functions are three fan speeds, light switching and brightness adjustment through 433 MHz RF control. Its listed electrical ratings match JF-99770. Confirm the exact housing configuration shown in the selected model images.

Motor

AC

Interface

RF remote

Input rating

110–120 V AC, 50/60 Hz

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

Close-up of the green receiver housing shown with 99770 series AC ceiling fan kits

Parameter

Specification

Motor type

AC

Input voltage

110–120 V AC, 50/60 Hz

Motor / light load

Motor: 1 A max; light: 180 W max

Remote Control Range

30 ft

Fan & light functions

3 fan speeds; light on/off; brightness adjustment

RF frequency

433 MHz

Housing dimensions

115 × 50 × 28 mm (L × W × H)

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

99770 series ceiling fan receiver drawing: 115 x 50 x 28 mm, with top and side views

Receiver dimensions in millimeters. Allow additional space for cables and connectors.

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

The receiver dimensions shown for this model are 115 × 50 × 28 mm. Request the dimensioned receiver outline for the selected JF-99770 Semi-Circle kit and check mounting clearance, connectors and cable routing against your canopy layout.

Electrical connection

Input is 110–120 V AC, 50/60 Hz, with maximum motor and light loads of 1 A and 180 W. Match the remote coding and receiver, then verify lamp or driver dimming compatibility. Confirm any structural differences from other JF-99770 versions before substitution.
