Jianfeng Ceiling Fan Controller

JF-028

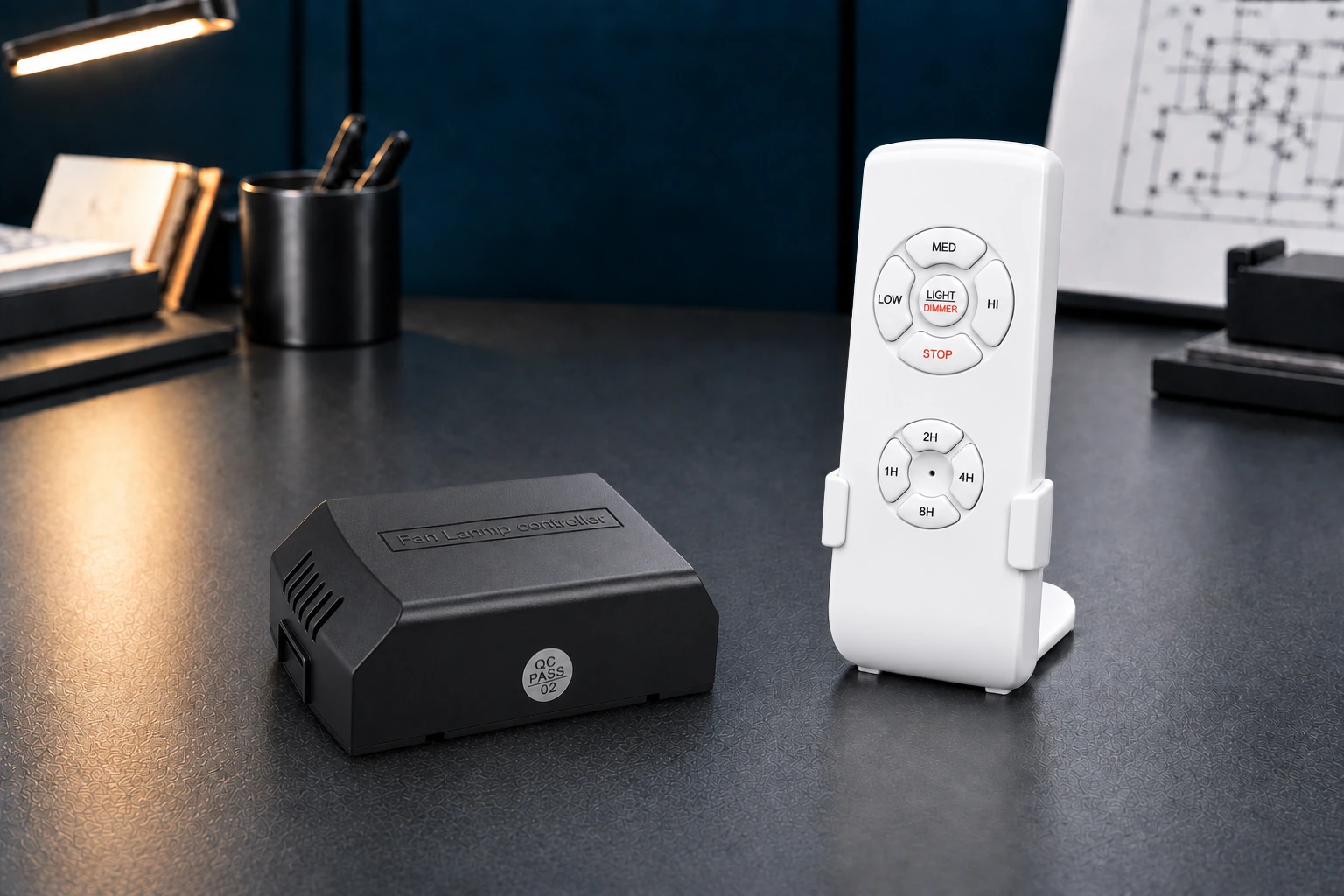

JF-028 AC Ceiling Fan Remote and Receiver Kit with Light Dimmer

JF-028 combines a three-speed AC ceiling fan remote with a matched receiver for light switching, brightness adjustment and timer control. Dimming requires a compatible lamp or light driver. For Wi-Fi or Alexa requirements, request the complete hardware list and setup instructions for the ordered configuration.

Motor

AC

Interface

RF remote; Wi-Fi; Alexa

Input rating

110–120 V AC, 50/60 Hz

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

Close-up of the black receiver housing shown with 016, 018 and 028 AC ceiling fan kits

Parameter

Specification

Motor type

AC

Input voltage

110–120 V AC, 50/60 Hz

Motor / light load

Motor: 1 A max; light: 180 W max

Remote Control Range

30 ft

Fan & light functions

3 fan speeds; light on/off; brightness adjustment; timer; Wi-Fi; Alexa

RF frequency

433 MHz

Housing dimensions

70 × 53 × 25 mm (L × W × H)

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

Receiver drawing for 016, 018 and 028 AC ceiling fan kits: 70 x 53 x 25 mm, with top and side views

Receiver dimensions in millimeters. Allow additional space for cables and connectors.

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

The receiver is 70 × 53 × 25 mm. Check canopy space and wire routing around the housing. A JF-028 Black model is also listed with the same published ratings and functions; confirm the finish and complete receiver configuration when choosing a version.

Electrical connection

The kit is listed for 110–120 V AC, 50/60 Hz, with maximum loads of 1 A for the motor and 180 W for the light. Check the permitted lamp type, dimming method, 433 MHz pairing and timer settings. A matching frequency or model name alone does not establish compatibility with another receiver.
