JF-018 Black

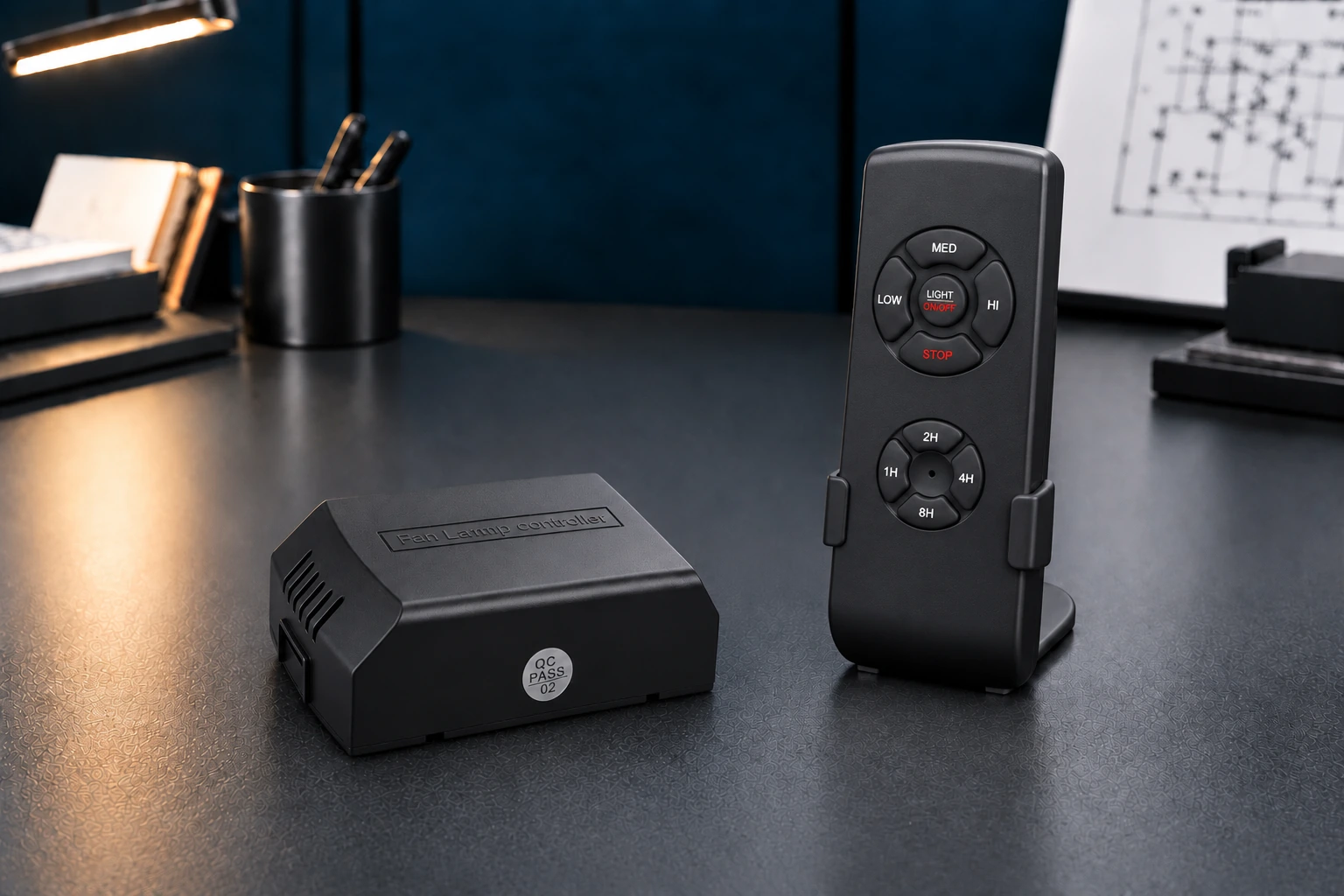

JF-018 Black 3-Speed AC Ceiling Fan Remote and Receiver Kit

JF-018 Black is the black model in the JF-018 range, supplied as an AC fan remote and matched receiver kit. It provides three fan speeds, light switching and timer control. Its published functions and electrical ratings match the JF-018 listing; confirm the selected finish, handset and receiver version when ordering.

Motor

AC

Interface

RF remote; Wi-Fi; Alexa

Input rating

110–120 V AC, 50/60 Hz

TECHNICAL DATA

Core
Specifications.

Key details for your model review.

Close-up of the black receiver housing shown with 016, 018 and 028 AC ceiling fan kits

Parameter

Specification

Motor type

AC

Input voltage

110–120 V AC, 50/60 Hz

Motor / light load

Motor: 1 A max; light: 180 W max

Remote Control Range

30 ft

Fan & light functions

3 fan speeds; light on/off; timer; Wi-Fi; Alexa

RF frequency

433 MHz

Housing dimensions

70 × 53 × 25 mm (L × W × H)

Final specifications follow the approved model datasheet.

Compare this product family · Selection guide · OEM / ODM review

Receiver drawing for 016, 018 and 028 AC ceiling fan kits: 70 x 53 x 25 mm, with top and side views

Receiver dimensions in millimeters. Allow additional space for cables and connectors.

FIT & CONNECTION

Dimensions
& Interfaces.

Check the fit before confirming the model.

Installation space

The listed receiver size is 70 × 53 × 25 mm. Check canopy clearance with connectors and wiring included. The black model designation does not establish a different installation size or compatibility range.

Electrical connection

Input is 110–120 V AC, 50/60 Hz; the motor limit is 1 A and the light limit is 180 W, with 433 MHz RF control. The lighting function shown for this kit is on/off; include any dimming requirement in your enquiry. Check lamp or driver suitability and timer settings. For Wi-Fi or Alexa requirements, request the complete hardware list and setup instructions for the ordered configuration.

Ask About
This Model.

Share your requirements for a product-specific reply.

Product: JF-018 Black

Enquiry for JF-018 Black

Your product reference is included.
