016

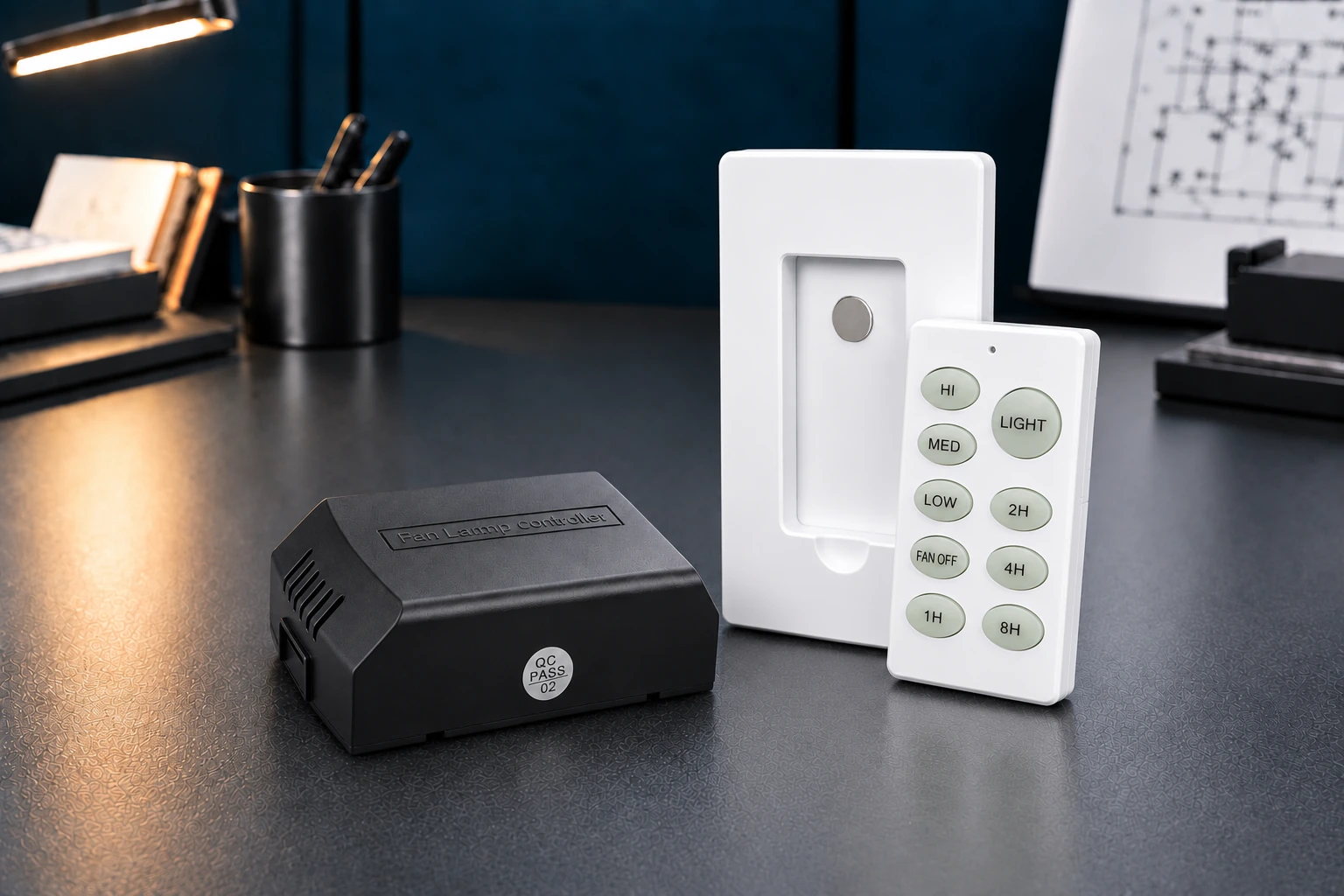

3-Speed AC Fan Remote Kit 016
016 pairs a handheld remote with a matched AC fan receiver. Three-speed fan and light control for ceiling fan installations.
Motor
AC
Interface
RF remote; Wi-Fi; Alexa
Input rating
110–120 V AC, 50/60 Hz
Parameter
Specification
Motor type
AC
Input voltage
110–120 V AC, 50/60 Hz
Motor / light Leistung
Motor: 1 A max; light: 180 W max
Remote Control Range
30 ft
Fan & light functions
3 fan speeds; light on/off; brightness adjustment; timer; Wi-Fi; Alexa
RF frequency
433 MHz
Housing dimensions
70 × 53 × 25 mm (L × W × H)
Final specifications follow the approved model datasheet.
Receiver dimensions in millimeters. Allow additional space for cables and connectors.
FIT & CONNECTION
Dimensions
& Interfaces.
Check the fit before confirming the model.
Installation space
Allow clearance for the receiver housing and cable routing inside the fan canopy.
Electrical connection
Match the supply voltage, motor and light load to the listed ratings. Follow the wiring instructions supplied with the matched receiver.
